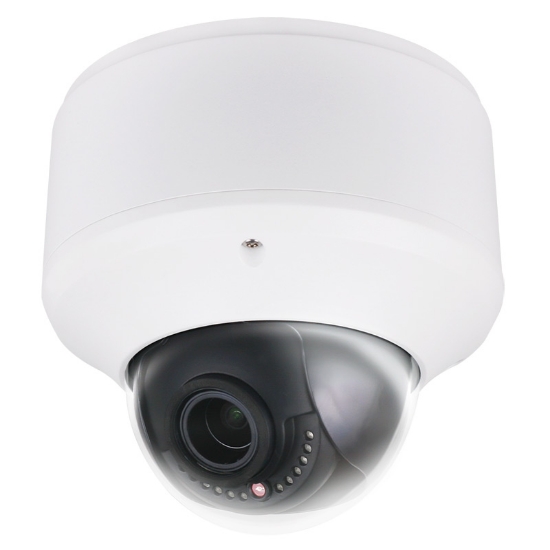

5 mega-pixel Dome Megapixel IP HD Camera 4mm (CMIP3953-Z)

SKU: 121645

Accepted Payments

5 mega-pixel (2560 x 1920)high resolution, Full HD1080p real-timerecording, 1/2.5 sensor, Motorized VF lens, Day / night auto witch, Vandal-proof housing, IP66 rating, Approx. 20~30m IRLEDs(66~100ft), 3-Axis
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 5 mega-pixel (2560 x 1920)high resolution
  • Full HD1080p real-timerecording
  • 1/2.5” sensor
  • Motorized VF lens
  • Day / night auto switch
  • Vandal-proof housing
  • IP66 rating
  • Approx. 20~30m IRLEDs(66~100ft)
  • 3-Axis


Image Sensor  1/2.5" Sensor
Min. Illumination 0.6 lux @F1.2, AGC on, 1 lux @F1.6, AGC on, 0 lux with IR
Shutter Speed 1/25s~1/100,000s
Lens 3.5 ~ 9 mm @F1.6, angle of view: 92°~ 36°
Lens Mount Φ14
Auto Iris DC drive
Day & Night IR cut filter with auto switch
Compression Standard
Video Compression H.264 / MPEG4 / MJPEG
Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Yes
Max. Resolution 2560 × 1920
Frame Rate 60 Hz: 7.5fps (2560 x 1920), 15 fps (2048 × 1536), 30 fps (1920 × 1080),
30 fps (1600 × 1200), 30fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
Network Storage NAS (iSCSI optional)
Alarm Trigger Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
Security User authentication, watermark
Communication Interface 1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface
Video Output 1Vp-p Composite Output (75 Ω, BNC)
On-board Storage Built-in SD/SDHC slot, up to 32 GB
Reset Button Yes
Working Temperature
Humidity 90% or less (non-condensing)
Power Supply 24 VAC ± 10%, PoE (802.3af)
Power Consumption Max. 9W (max. 12W with IR cut filter on)
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection level IP66
IR range Approx. 20 ~ 30m (66~100ft)
Dimension  Φ159.8 × 146 mm (Φ 6.29" × 5.75")
Weight 2100g (4.62 lbs)
