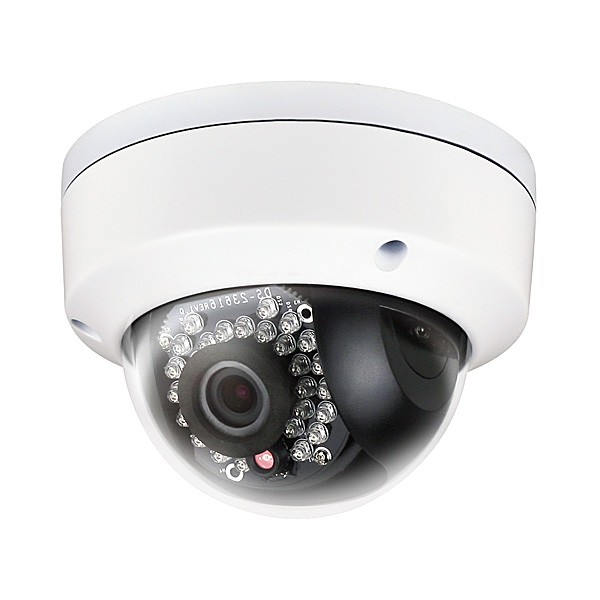

3MP Dome IP Camera 4mm (CMIP3432)

SKU: 121643
MPN: CMIP3432
Be the first to review this product
$252.95
$185.95

Accepted Payments

3.0 megapixel high resolution, HD real-time video, Day / night auto switch, IP66 ingress protection, IR LEDs :Approx 65 to 100ft(About 20 to 30m), Vandal-proof housing, 3D DNR & DWDR & BLC
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 3.0 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC



Camera
Image Sensor: 1/3" sensor
Min. Illumination: 0.14 [email protected], AGC ON
0 lux with IR
Shutter time: 1/25s ~ 1/100,000s
Lens: 4.0mm @F2.0

2048 × 1536: angle of view: 70°

1920 × 1080: angle of view: 79°
Lens Mount: M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Day& Night: ICR
Compression Standard
Video Compression: H.264 /MJPEG
H.264 codec profile Main profile
Bit Rate: 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Image Resolution: 2048x1536
Frame Rate:

60 Hz: 20fps (2048 x 1536), 30fps (1920 ×1080), 30fps (1280 x 720)

50 Hz: 20fps (2048 x 1536), 25fps (1920 ×1080), 25fps (1280 x 720)
Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
BLC: Yes, zone configurable
Network
Network Storage: NAS (iSCSI optional)
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
Security: User authentication, watermark
System Compatibility: ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
General
Operating Conditions: -13°F ~ 140°F (-25°C ~ 60°C) humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Weather Proof: IP66
IR Range:
Dimensions: Φ 4.4"× 3.2"(111 × 82 mm)
Weight: 1.1lb(500g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 4mm
Technology IP/Network
Resolution 3MP
Camera Features Outdoor
Camera Features Vandal Proof
Camera Features WDR
