Manufacturer: LTS Security

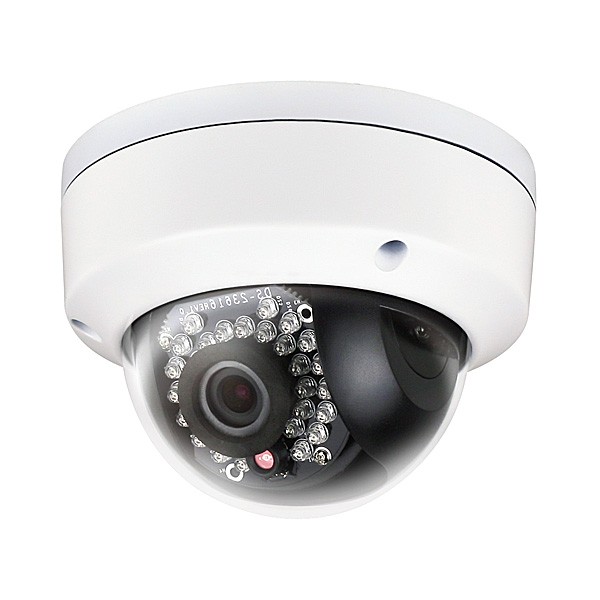

1.3MP Dome IP Camera Outdoor DWDR 4mm (CMIP3412)

SKU: 121641
MPN: CMIP3412
$129.95
$185.95

1.3 megapixel high resolution, HD real-time video, Day / night auto switch, IP66 ingress protection, IR LEDs :Approx 65 to 100 ft(About 20 to 30m), Vandal-proof housing, 3D DNR & DWDR & BLC
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Lens4mm
TechnologyIP/Network
Resolution1.3MP/960p
Camera FeaturesOutdoor, Vandal Proof, WDR
  • 1.3 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100 ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC



Camera
Image Sensor:1/3" sensor
Min. Illumination:0.028 [email protected], AGC ON
0 lux with IR
Shutter time:1/25s ~ 1/100,000s
Lens:4.0mm @F2.0
1280 × 960: angle of view: 73.1°
Lens Mount:M12
Angle adjustmentPan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction3D DNR
Wide dynamic rangeDigital WDR
Day& Night:ICR
Compression Standard
Video Compression:H.264 /MJPEG
H.264 codec profileMain profile
Bit Rate:32 Kbps ~ 16 Mbps
Dual streamYes
Max. Image Resolution:1280x960
Frame Rate:

60 Hz: 30 fps (1280 × 960), 30 fps(1280 x 720)

50 Hz: 25 fps (1280 × 960), 25 fps(1280 x 720)

Image Settings:Saturation, brightness, contrast adjustable through client software or web browser
BLC:Yes, zone configurable
Network
Network Storage:NAS (iSCSI optional)
Alarm Trigger:Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
Security:User authentication, watermark
System Compatibility:ONVIF, PSIA, CGI
General functionalitiesFlickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface:1 RJ45 10M / 100M ethernet interface
General
Operating Conditions:-13°F ~ 140°F (-25°C ~ 60°C) humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 10%, PoE (802.3af)
Power Consumption:Max. 5.5W
Impact protectionIEC60068-275Eh, 50J; EN50102, up to IK10
Weather Proof:IP66
IR Range:Approx 65 to 100 ft(About 20 to 30m)
Dimensions:Φ 4.4"× 3.2"(111 × 82 mm)
Weight:1.1lb(500g)
