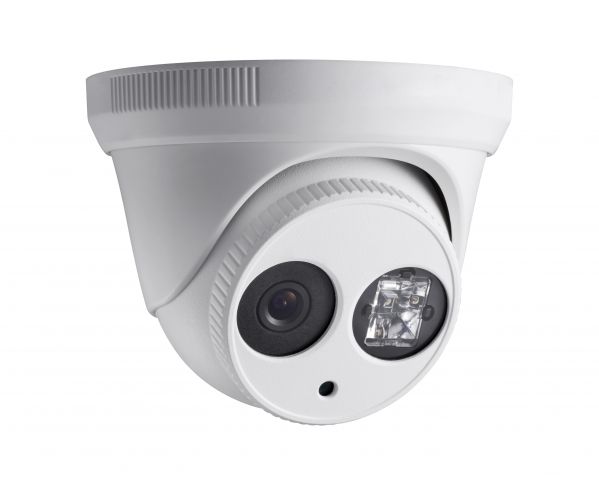

- 1/3" Sensor
- HD 1080P Video Output
- Adopts HDTVI Technology
- True Day/Night
- 2.8mm Fixed Lens
- 1 Matrix IR LED up to 131ft (40m)
- WDR
- OSD Menu via UTC technology with Platinum TVI DVR
- DC 12V
| CMHT2722W-28 | |
| Camera | |
| Image Sensor | 1/3"Sensor |
| Signal System | NTSC / PAL(Euro Version) |
| Effective Pixels | 1920(H)×1080(V) |
| Min. Illumination | 0.01 Lux @ (AGC ON),0 Lux with IR |
| Shutter Speed | NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000 |
| Lens | 2.8mm |
| Day & Night | ICR |
| Synchronization | Internal synchronization |
| Video Frame Rate | NTSC:1080p@30fps/PAL:1080p@25fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | More than 52dB |
| Menu | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID | On / off (15 characters, position programmable) |
| AGC | Support |
| D / N Mode | Color / BW / EXT |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual |
| D/N Mode | Color/BW/SMART IR |
| Privacy Mask | On/Off,maximum 8 zones |
| Motion Detection | On / Off, maximum 4 zones |
| BLC | Support |
| Anti-flicker | On / off |
| Language | English, Japanese, CHN1, CHN2, Korean, German, French, Italian,Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| General | |
| Working Temperature /Humidity | -4°F - 140°F(-20 °C - 60 °C ) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12V DC |
| Power Consumption | Max.5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 131ft(40m) |
| Dimension | φ4.5'' × 3.5'' ( φ114.6 x 89.1mm) |
| Weight | 0.7lb(300g) |
Products specifications
| Resolution | 2MP/1080p |
| Camera Features | WDR, Outdoor |
| Technology | HD-TVI |
| Lens | 2.8mm |
