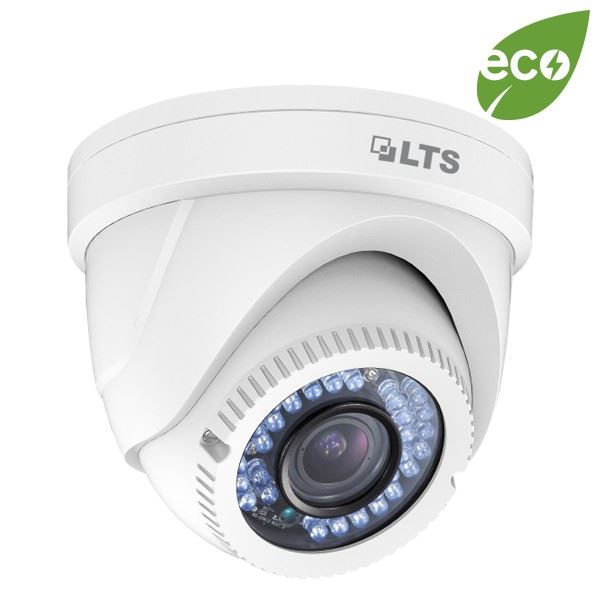

HD-TVI 1080p Turret IR Dome Camera (CMHT1823)

SKU: 121732

Accepted Payments

HD-TVI Turret 1080P Dome Camera, HD-TVI Technology Over Coax, 1/3"Sensor, 2.8-12mm adjustable Lens, 42 IR LEDs up to 131ft (40m) IR distance, DC12V with OSD, Great for both indoor or outdoor, ECO friendly Energy Efficient 2MP HD-TVI Turret cameras that is very affordable.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 1/3" Sensor
  • HD 1080P Video Output
  • Adopts HDTVI Technology
  • True Day/Night
  • 2.8-12mm Adjustable Lens
  • 42 IR LEDs up to 131ft (40m)
  • IP66 weatherproof
  • OSD Menu via UTC technology with Platinum TVI DVR
  • DC 12V
Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1920(H)×1080(V)
Min. Illumination 0.01 Lux @ (AGC ON),0 Lux with IR
Shutter Speed NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens 2.8-12mm
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate NTSC:[email protected]/PAL:[email protected]
HD Video Output 1 Analog HD output
S/N Ratio More than 52dB
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On / off (15 characters, position programmable)
AGC Support
D / N Mode Color / BW / EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
D/N Mode Color/BW/SMART IR
Privacy Mask On/Off,maximum 8 zones
Motion Detection On / Off, maximum 4 zones
BLC Support
Anti-flicker On / off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian,Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
Working Temperature
-4°F - 140°F(-20 °C - 60 °C )
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max.4W
Weather Proof Ratings IP66
IR Range Up to 131ft (40m)
Dimension  3.5'' × 2.3'' ( 89.6 x 59.1mm)
Weight 0.9lb(400g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
plug and play great picture
plug and play, easy to install and the picture is crisp clear
From: Guest | Date: 1/28/2017 2:52 PM
Was this review helpful? Yes No (0/0)
Products specifications
Resolution 2MP/1080p
Lens 2.8-12mm
Technology HD-TVI
Camera Features Outdoor
