16 HD-SDI Magic DVR Replacement - Thursday, April 29, 2021
16ch HD-SDI EX-SDI DVR is now available, up to 8MP EX-SDI and up to 4MP SDI camera support now in stock as a Magic DVR replacement.

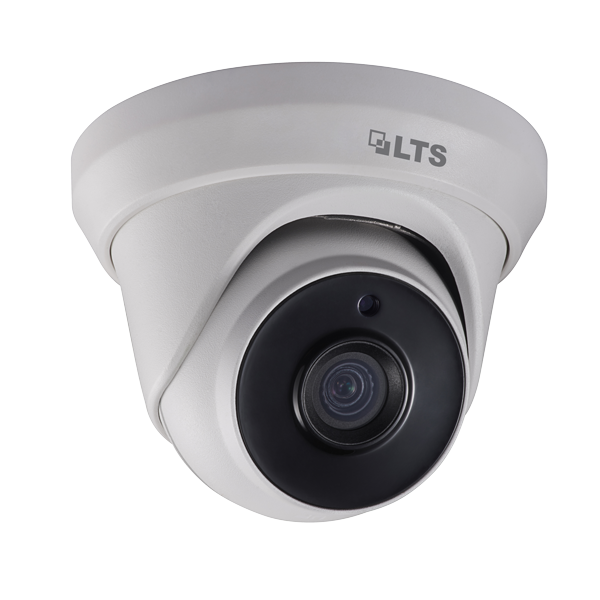

3.6mm HD-TVI 3MP 131ft IR Dome Camera (CMHT17T2W)

SKU: 121749

Accepted Payments

CMHT17T2W 3MP HD-TVI Over coax weatherproof IR Dome Camera with Matrix IR for up to 131ft night vision and WDR, fixed wide 3.6mm fixed lens and OSD.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 3MP HD-TVI
  • 3.6mm Fixed Lens
  • True 120dB WDR
  • 2 Matrix IR up to 131ft
  • IP66 weatherproof
  • OSD Menu via UTC technology with Platinum TVI DVR
  • DC 12V


Image Sensor 1/3" CMOS
Signal System NTSC/PAL
Effective Pixels 2052(H)*1536(V)
Min. Illumination 0.01Lux, 0 Lux with IR
Lens 3.6mm
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 1920x1536@18fps
HD Video Output 1 Analog HD Output
S/N Ratio More than 62dB
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function True WDR, DNR, Mirror, SMART IR
Working Temperature
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range Up to 131ft (40m)
Dimensions 3.6" x 3.3" x 2.7" (91.0 x 82.6 x 68.3mm)
Weight 0.8 lbs (350g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Love this camera
crisp picture quality day and night. very happy with this purchase.
From: Guest | Date: 1/14/2018 3:16 PM
Was this review helpful? Yes No (0/0)
Products specifications
Camera Features WDR
Resolution 3MP
Lens 3.6mm
Technology HD-TVI
Camera Features Outdoor
