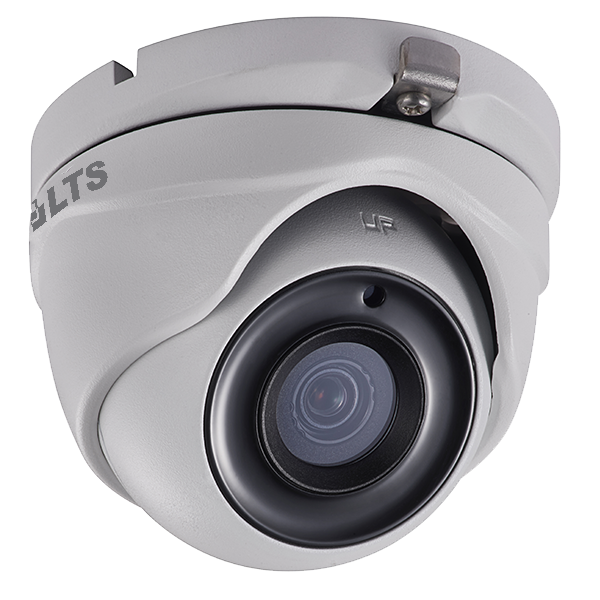

2.8mm HD-TVI 3MP IR Dome Camera Wide lens (CMHT13T2W-28)

SKU: 121747

Accepted Payments

CMHT13T2W-28 3MP HD-TVI Over coax weatherproof IR Dome Camera with Matrix IR for up to 65ft night vision and WDR, a ultra wide 2.8mm fixed lens and OSD.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 3MP HD-TVI
  • 2.8mm Utra-wide Fixed Lens
  • True 120dB WDR
  • 2 Matrix IR up to 65ft
  • IP66 Weatherproof
  • DC 12V


Image Sensor 1/3" CMOS
Signal System NTSC/PAL
Effective Pixels 2052(H)*1536(V)
Min. Illumination 0.01Lux, 0 Lux with IR
Lens 2.8mm
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 1920x1536@18fps
HD Video Output 1 Analog HD Output
S/N Ratio More than 62dB
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function True WDR, DNR, Mirror, SMART IR
Working Temperature
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V, AC 24V
Power Consumption Max. 5W
Weather Proof Ratings IP66
IR Range Up to 65ft (40m)
Dimensions 3.6" x 3.3" x 2.7" (91.0 x 82.6 x 68.3mm)
Weight 0.8 lbs (350g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
easy to install and nice wide lens

We bough few of this camera and we have been more than happy with the quality and how easy to install.
From: Guest | Date: 1/11/2017 12:17 AM
Was this review helpful? Yes No (0/0)
Products specifications
Camera Features WDR
Resolution 3MP
Technology HD-TVI
Lens 2.8mm
Camera Features Outdoor
