- 3MP HD-TVI
- 3.6mm Fixed Lens
- True 120dB WDR
- 2 Matrix IR up to 131ft
- OSD Menu via UTC technology with Platinum TVI DVR
- IP66 weatherproof
- DC 12V

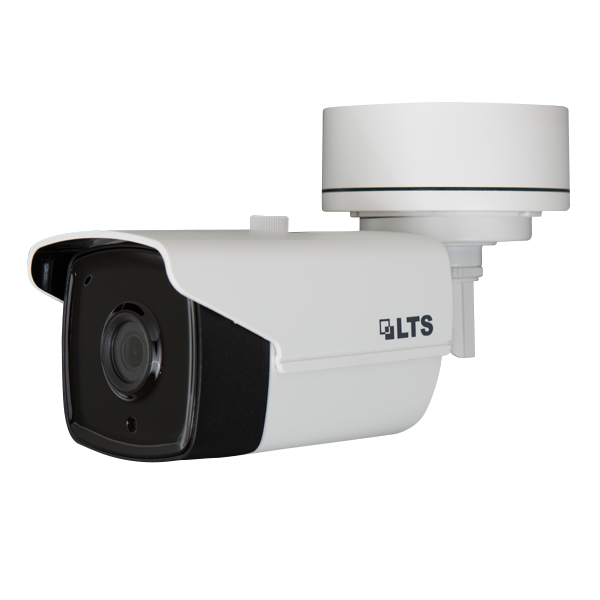

| CMHR92T2W CAMERA | |
| Image Sensor | 1/3" CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 2052(H)*1536(V) |
| Min. Illumination | 0.01Lux, 0 Lux with IR |
| Lens | 3.6mm |
| Shutter Speed | 1/30 (1/25) to 1/50,000 s |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 1920x1536@18fps |
| HD Video Output | 1 Analog HD Output |
| S/N Ratio | More than 62dB |
| MENU | |
| AGC | Support |
| D/N Mode | Color/ BW/ SMART |
| White Balance | ATW/ MWB |
| BLC | Support |
| Function | True WDR, DNR, Mirror, SMART IR |
| GENERAL | |
| Working Temperature /Humidity |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | Max. 5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 131ft (40m) |
| Dimensions | 3.4" x 3.2" x 8.7" (86.7 x 81.6 x 226.0mm) |
| Weight | 1.5 lbs (680g) |
Products specifications
| Camera Features | WDR, Outdoor |
| Lens | 3.6mm |
| Technology | HD-TVI |
| Resolution | 3MP |
