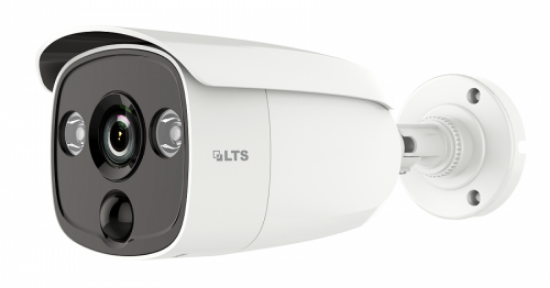

- High Definition Bullet 5MP HD-TVI Camera
- 2.8mm Fixed Lens
- 2560x1944@20fps
- 0.01 Lux, Smart IR
- 2 Matrix IR 2.0 LED up to 66ft
- UTC Control to OSD Menu
- DC 12V
- IP67
- PIR detection, visual alarm
CMHR9252N-28PIR CAMERA | |
Image Sensor | 5MP CMOS |
Signal System | NTSC/PAL |
Effective Pixels | 2560(H)*1944(V) |
Min. Illumination | 0.01 Lux, 0 Lux with IR |
Lens | 2.8mm; FoV: 85.5° |
Shutter Speed | 1/30 (1/25) to 1/50,000 s |
Day & Night | ICR |
Synchronization | Internal |
Video Frame Rate | 2560 x 1944@20fps |
HD Video Output | 1 Analog Output |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
MENU | |
White Light | Alarm/Lighting/Off |
AGC | Support |
D/N Mode | Color/ BW/ SMART |
White Balance | ATW/ MWB |
BLC | Support |
Function | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
GENERAL | |
Working Temperature /Humidity |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing) |
Power Supply | DC 12V |
Power Consumption | Max. 4.5W |
Weather Proof Ratings | IP67 |
IR Range | Up to 66ft (20m) |
Dimensions | 3.49" × 3.20" × 8.85" (88.6 mm × 81.3 mm × 224.7 mm ) |
Weight | 0.95 lbs (430g) |
Products specifications
Camera Features | Outdoor |
Lens | 2.8mm |
Resolution | 5MP |
Technology | HD-TVI |
