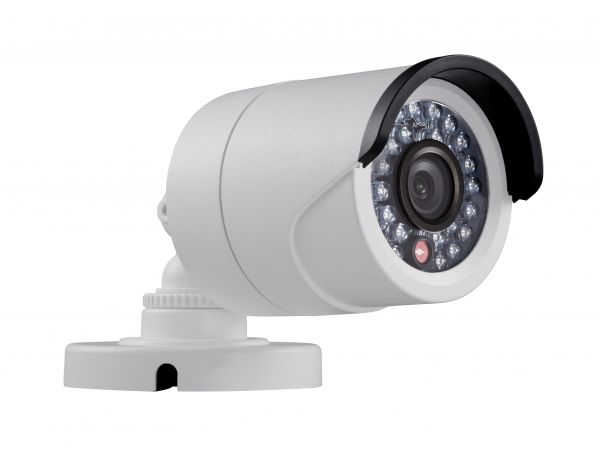

- 1/3" Sensor
- HD 720P Video Output
- Adopts HDTVI Technology
- True Day/Night
- 3.6mm Fixed Lens
- 24 IR LEDs up to 65ft (20m)
- DC 12V
CMHR6232 | |
Camera | |
Image Sensor | 1/3"Sensor |
Signal System | NTSC / PAL(Euro Version) |
Effective Pixels | 1280(H)×720(V) |
Min. Illumination | 0.01 Lux @ (AGC ON),0 Lux with IR |
Shutter Speed | NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000 |
Lens | 3.6mm |
Day & Night | ICR |
Synchronization | Internal synchronization |
Video Frame Rate | NTSC:720p@30fps/PAL:720p@25fps |
HD Video Output | 1 Analog HD output |
S/N Ratio | More than 52dB |
General | |
Working Temperature /Humidity |
-40°F - 140°F (-40 °C - 60 °C) |
Humidity 90% or less (non-condensing) | |
Power Supply | 12V DC |
Power Consumption | Max.3.5W |
Weather Proof Ratings | IP66 |
IR Range | 65ft(20m) |
Dimension | φ2.8" × 5.9" (φ70.0 ×149.5mm) |
Weight | 0.8lb(360g) |
Products specifications
Resolution | 1MP/720p |
Camera Features | Outdoor |
Lens | 3.6mm |
Technology | HD-TVI |
