- Individual setting of resolution, frame rates and picture quality
- Instant Replay / Digital Zoom / Mouse Control
- Full GUI with alpha blending
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 576 area setting
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 users
- Deinterlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Relay alarm ouput
- PTZ control by RS-485
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Dual CODEC engine for independent video transmission

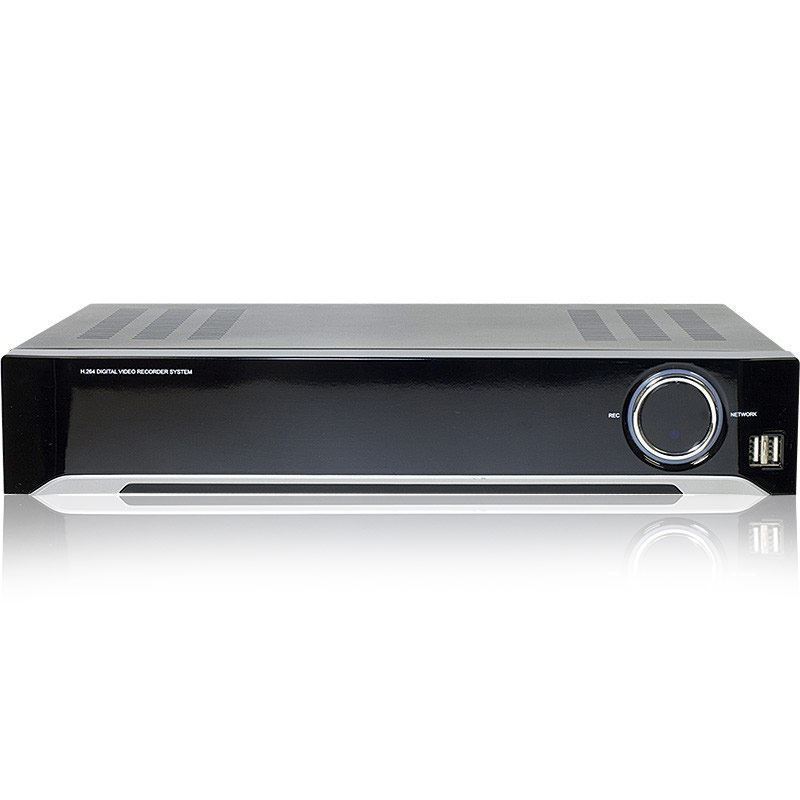

| AVST-RT104 | ||
| Video | Video Input | 4CH BNC |
| Individual HD/Analog Selectable | All Hybrid (Manual Setting, two channels pair) | |
| Available source | AHD 720p25,30/Composite/960H/Mixed | |
| Output | 1 HDMI (Main Display) / 1 VGA (Main Display) | |
| Audio | Audio Input | 4 RCA |
| Ouput | 1 RCA, 1 HDMI | |
| Sensor In | 4 (NC, No Selectable) | |
| Alarm out | 1 relay | |
| Operating System | Embedded Linux OS | |
| Display | Speed | Real Time |
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080 | |
| Split screen | 1, 4 | |
| Main Recording | CODEC | H.264 |
| Resolution (Pixel) | 720p (720p25, 30) / 960H, D1 (Composite, 960H) | |
| Speed | NTSC area: 60fps@720p, PAL area: 50fps@720p | |
| Playback | Display | 1, 4 |
| Search Mode | Calendar, Event, POS, Panorama, Thumbnail | |
| Speed | NTSC area: 30fps@720p, PAL area: 25fps@720p | |
| Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause | |
| Network | Network Interface | Megabit Ethernet |
| Low Resolution | 480x256 (720p25,30) / CIF (Composite, 960H) | |
| Speed | NTSC area: 60fps@480x256, PAL area: 50fps@480x256 | |
| Backup | Interface | USB 2.0 X 2 |
| Backup Device | External HDD, CD&DVD-RW, Network, Thumb Drive | |
| The number of HDD | 1 SATA | |
| Others | Power | 24W |
| Operating | 5~40°C (41~104F) | |
| Relative Humidity | Maximum 80% non-condensing | |
| Dimension | 300(W) x 210(D) x 48(H) mm | |
Products specifications
| Technology | A-HD |
| Number of Channels | 4Ch |
