| Product Highlights | |
| Technology | HD-TVI |
| Lens | Motorized Lens |
| Resolution | 5MP |

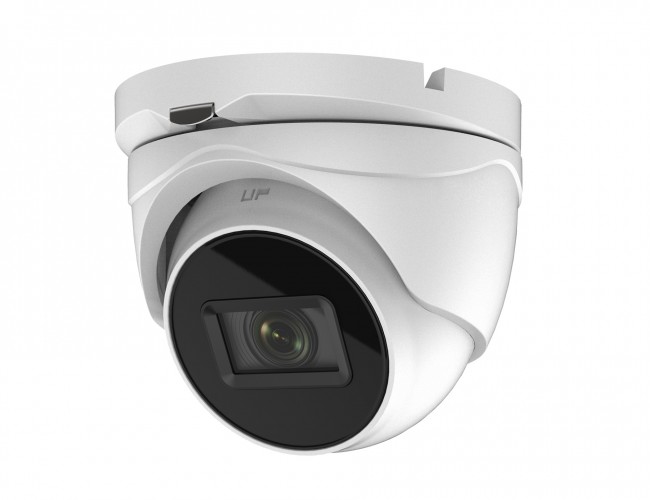

- HD Over Coax IR Turret
- Switchable TVI, AHD, CVI, CVBS
- Starlight Ultra-Low Light Technology
- 5MP (2592x1944 Resolution)
- 2.7-13.5mm Motorized Lens
- Approx 131 FT IR Range
- 130dB WDR
- IP67 Rated
- 3 Axis Design
- Dual Voltage
Details
| MODEL | AC346D-VD4Z |
| Camera | |
| Image Sensor | 5MP Progressive Scan CMOS |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Frame Rate | TVI: 2MP@30FPS, 4MP@30FPS, 5MP@20FPS AHD: 4MP@30FPS, 5MP@20FPS CVI: 4MP@30FPS CVBS: NTSC |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 2.7mm to 13.5mm motorized, Angle of View: 92.3° to 29.3° |
| Day & Night | ICR |
| Wide Dynamic Range | 130dB |
| Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 75°; Rotate: 0° - 355° |
| Menu | |
| Image Mode | STD, High-SAT |
| AGC | Yes |
| Day/Night Mode | Auto, color, black and white |
| White Balance | Auto, manual |
| AE (Auto Exposure) Mode | WDR, BLC, Global |
| Noise Reduction | 3D DNR |
| Functions | Brightness, sharpness, mirror, smart IR |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | Dual Voltage |
| Power Consumption | Max 10.5W |
| Ingress Protection | IP67 |
| IR Range | Approx 131FT |
| Dimensions | 4.88" x 5.29" x 4.34" |
| Weight | Approx 2 LBS |
