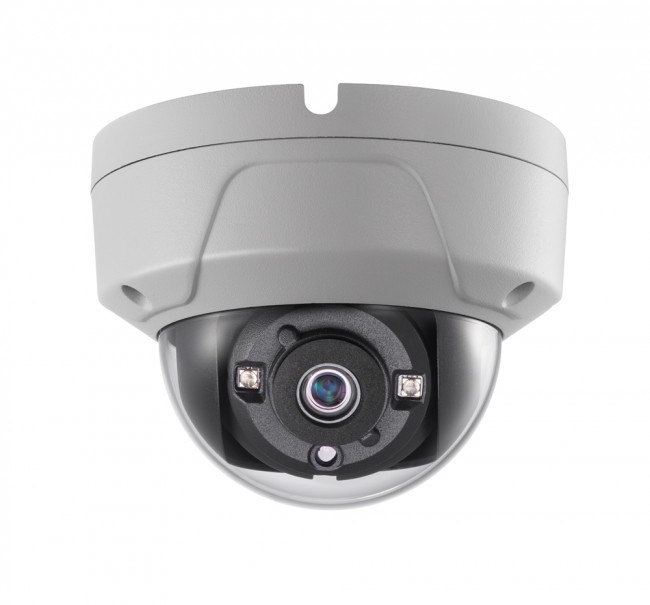

- HD Over Coax IR Dome
- Switchable TVI, AHD, CVI, CVBS
- Starlight Ultra-Low Light Technology
- 5MP (2592x1944 Resolution)
- 3.6mm Fixed Lens
- Approx 100 FT IR Range
- 130dB WDR
- Vandal Resistant
- 3 Axis Design
- DC12V
Details
| MODEL | AC346-OD |
| Camera | |
| Image Sensor | 5MP Progressive Scan CMOS |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Frame Rate |
TVI: 2MP@30FPS, 4MP@30FPS, 5MP@20FPS AHD: 4MP@30FPS, 5MP@20FPS CVI: 4MP@30FPS CVBS: NTSC |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 3.6mm Fixed Lens, Angle of View: 78° |
| Day & Night | ICR |
| Wide Dynamic Range | 130dB |
| Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 75°; Rotate: 0° - 355° |
| Menu | |
| AGC | Yes |
| Day/Night Mode | Auto, color, black and white |
| White Balance | Auto, manual |
| Backlight Compensation | Yes |
| 3D DNR | Level 1 to 9 |
| Functions | Brightness, sharpness, 3D DNR, mirror, smart IR |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | DC12V |
| Power Consumption | Max 6W |
| Ingress Protection | IP67, IK10 |
| IR Range | Approx 100FT |
| Dimensions | 4.4" x 3.2" |
| Weight | Approx 2 LBS |
Products specifications
| Technology | HD-TVI |
| Lens | 3.6mm |
