Manufacturer: Hikvision

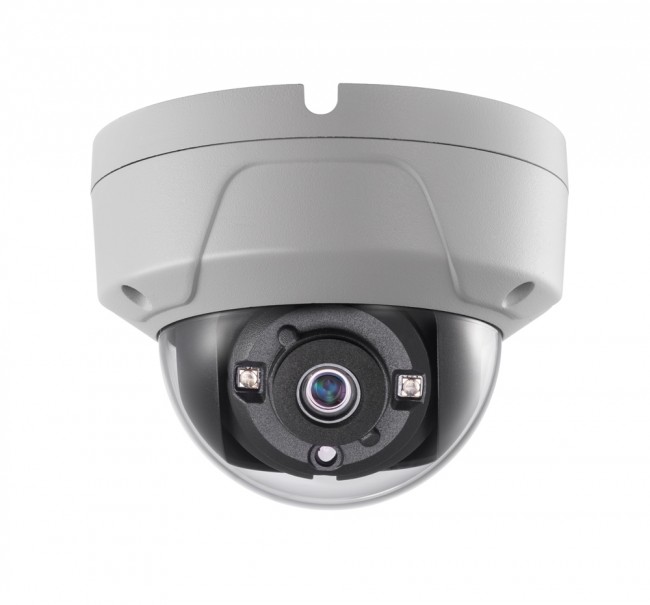

5MP TVI Dome Camera Supports TVI, AHD, CVI, CVBS 2.8mm Fixed Lens (AC346-OD-2.8)

SKU: 202074
MPN: AC346-OD-2.8
$90.99
$125.99
Take surveillance to the next level with the (AC346-OD-2.8) Hikvision 5MP Dome Vandal Resistant TVI Camera 2.8mm Fixed Lens, offering features such as 2.8mm Fixed Lens, 5MP, HD, 2.8mm Fixed Lens, 2.8mm Fixed Lens, HD Over Coax IR Dome. A dependable choice for professional-grade video surveillance.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyHD-TVI
Lens2.8mm
Resolution5MP
  • HD Over Coax IR Dome
  • Switchable TVI, AHD, CVI, CVBS
  • Starlight Ultra-Low Light Technology
  • 5MP (2592x1944 Resolution)
  • 2.8mm Fixed Lens
  • Approx 100 FT IR Range
  • 130dB WDR
  • Vandal Resistant
  • 3 Axis Design
  • DC12V
Details
MODEL AC346-OD-2.8
Camera
Image Sensor5MP Progressive Scan CMOS
Effective Pixels2592 (H) x 1944 (V)
Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC On), 0.0 Lux with IR
Frame Rate

TVI: 2MP@30FPS, 4MP@30FPS, 5MP@20FPS

AHD: 4MP@30FPS, 5MP@20FPS

CVI: 4MP@30FPS

CVBS: NTSC

Shutter Time1/30 Sec to 1/50,000 Sec
Lens2.8mm Fixed Lens, Angle of View: 98°
Day & NightICR
Wide Dynamic Range130dB
Angle AdjustmentPan: 0° - 355°; Tilt: 0° - 75°; Rotate: 0° - 355°
Menu
AGCYes
Day/Night ModeAuto, color, black and white
White BalanceAuto, manual
Backlight CompensationYes
3D DNRLevel 1 to 9
FunctionsBrightness, sharpness, 3D DNR, mirror, smart IR
General
Working Temperature-40°F - 140°F
Power SupplyDC12V
Power ConsumptionMax 6W
Ingress ProtectionIP67, IK10
IR RangeApprox 100FT
Dimensions4.4" x 3.2"
WeightApprox 2 LBS
