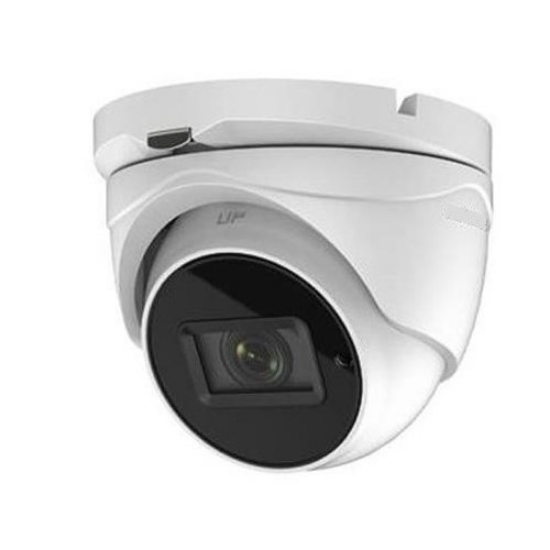

- HD Over Coax IR Turret
- Switchable TVI, AHD, CVI, CVBS
- 8MP (3840x2160 Resolution)
- 2.7-13.5mm Motorized Lens
- EXIR Technology With Smart IR
- Approx 131 FT IR Range
- True Day & Night With ICR
- 3 Axis Design
- DC12V
Details
| MODEL | AC318-VD4Z |
| Camera | |
| Image Sensor | 8MP Progressive Scan CMOS |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/15 Sec to 1/50,000 Sec |
| Lens | 2.7-13.5mm Motorized, Angle of View: 108.1° to 45.6° |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360° |
| Video Frame Rate |
TVI: 8MP@15FPS, 5MP@20FPS, 4MP@20FPS, 2MP@30FPS CVI: 8MP@15FPS AHD: 5MP@20FPS CVBS: 960H |
| Wide Dynamic Range | D-WDR |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW |
| White Balance | ATW, Manual |
| Backlight Compensation | Support |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 120°F |
| Power Supply | DC12V |
| Power Consumption | Max 8.6W |
| IR Range | Approx 131FT |
| Dimensions | 5.29" x 4.88" x 4.34" |
| Weight | Approx 4 LBS |
Products specifications
| Technology | HD-TVI |
