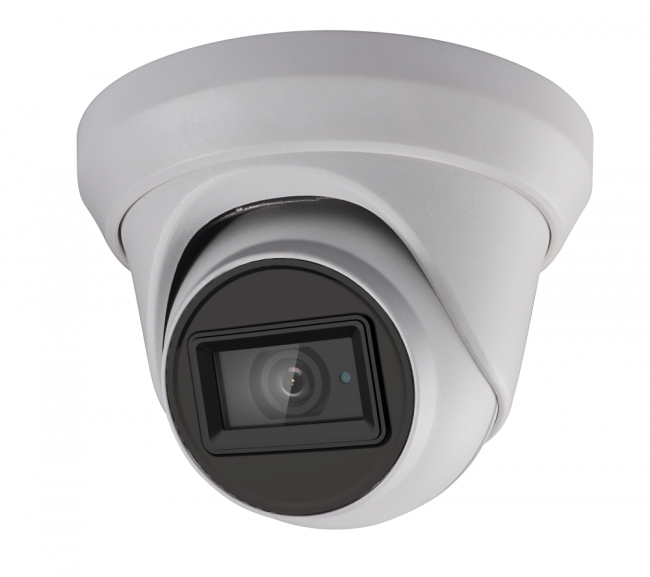

- HD Over Coax IR Turret
- Switchable TVI, AHD, CVI, CVBS
- 8MP (3840x2160 Resolution)
- 3.6mm Fixed Lens
- EXIR Technology With Smart IR
- Approx 100 FT IR Range
- True Day & Night With ICR
- 3 Axis Design
- DC12V
Details
| MODEL | AC318-FD4 |
| Camera | |
| Image Sensor | 8MP Progressive Scan CMOS |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/15 Sec to 1/50,000 Sec |
| Lens | 3.6mm Fixed, Angle of View: 79° |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 75°; Rotate: 0° - 355° |
| Video Frame Rate |
TVI: 8MP@15FPS, 5MP@20FPS, 4MP@20FPS, 2MP@30FPS CVI: 8MP@15FPS AHD: 5MP@20FPS CVBS: 960H |
| Wide Dynamic Range | D-WDR |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW |
| White Balance | ATW, Manual |
| Backlight Compensation | Support |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 120°F |
| Power Supply | DC12V |
| Power Consumption | Max 5.3W |
| IR Range | Approx 100FT |
| Dimensions | 4.32" X 3.6" |
| Weight | Approx 2 LBS |
Products specifications
| Technology | HD-TVI |
| Lens | 3.6mm |
