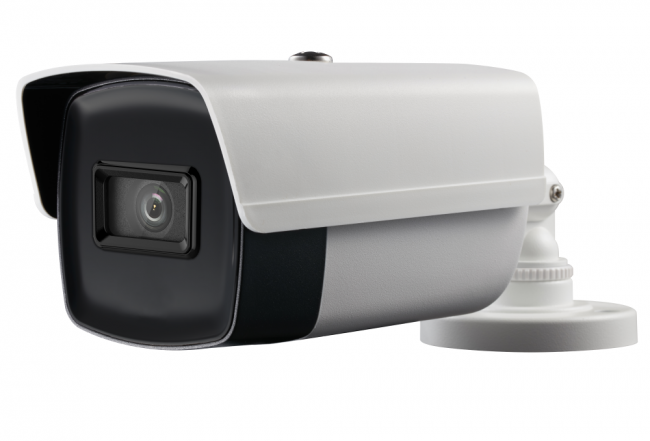

- HD Over Coax IR Bullet
- Switchable TVI, AHD, CVI, CVBS
- 5MP (2592x1944 Resolution)
- 2.8mm Fixed Lens
- EXIR Technology With Smart IR
- Approx 120 FT IR Range
- True Day & Night With ICR
- IP67 Rated
- DC12V
Details
| MODEL | AC316-FB4-2.8 |
| Camera | |
| Image Sensor | 5MP Progressive Scan CMOS |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 2.8mm Fixed Lens, Angle of View 102° |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 90°; Rotate: 0° - 355° |
| Video Frame Rate | 2592x1944 @ 20FPS |
| HD Video Output | 1 Analog HD Output |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW |
| White Balance | ATW, Manual |
| Backlight Compensation | Support |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | DC12V |
| Power Consumption | Max 7.5W |
| Ingress Protection | IP67 |
| IR Range | Approx 120FT |
| Dimensions | 3.41" x 3.23" x 8.67" |
| Weight | Approx 2 LBS |
Products specifications
| Technology | HD-TVI |
| Lens | 2.8mm |
