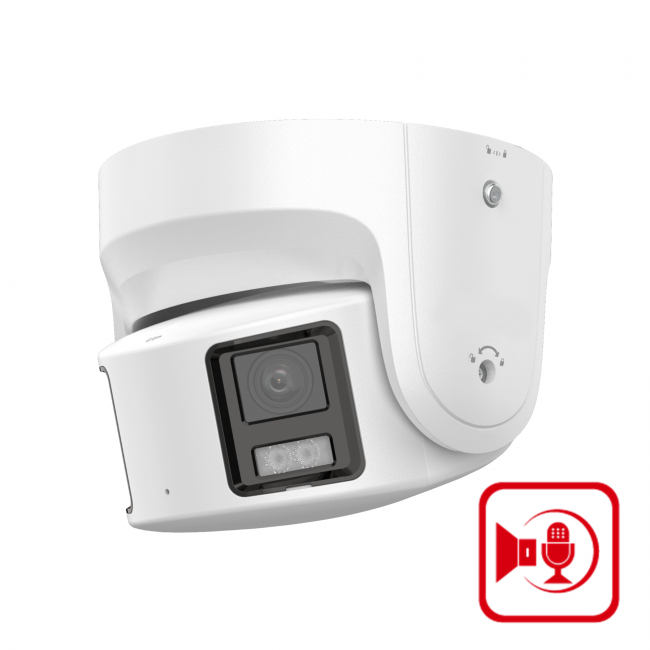

- 180° Panoramic Outdoor Turret
- 24/7 Full Time Color
- Human And Vehicle Classification
- Active Strobe Light and Audible Alarm
- 8MP (5120x1440) Resolution
- Dual Lens: 2 x 4mm Fixed Lens
- Approx. 131 FT White Light
- 130dB WDR, IP67 Rated
- Built-in Micro SD Card Slot
- DC12V, PoE
- Not Compatible with TVI DVRs
- Not Compatible with NR32P4-4 NVR
Details
| MODEL | GNC348G2P-XDLU/SL |
| Camera | |
| Image Sensor | 2 x 1/1.8" Progressive Scan CMOS |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | Fixed focal lens, dual lens: 4mm |
| Lens Mount | M16 |
| Angle Adjustment | Pan: -30° - 30°, Tilt: -75° - 75° |
| Day & Night | Color |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 130dB |
| Compression Standard | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| H.264 Tupe | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR, VBR |
| Image | |
| Max. Resolution | 5120 x 1440 |
| Frame Rate |
WDR On: 60Hz: 15 FPS (5120x1440) WDR Off: 60 Hz: 20 FPS (5120x1440) |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 Users: 3 User Levels: Administrator, Operator, User |
| Security | Password Protection, Complicated password, HTTPS Encryption |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 11W |
| Ingress Protection | IP67 |
| Supplement White Light Range | Approx. 131 FT |
| Dimension | 6.1" x 6.1" |
| Weight | 3 LBS |
Products specifications
| Technology | IP/Network |
