| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4K 8MP |
| Lens | Motorized Lens |
- DarkFighter Low Light Dome
- False Alarm Filter By Target Classification
- Human and Vehicle Classification
- Smart Perimeter Protection
- 8MP (3840x2160 Resolution)
- 2.8-12mm Motorized Lens
- 131FT IR Range
- 120dB WDR, Vandal Resistant
- Built-in Micro SD Card Slot
- DC12V, PoE
Details

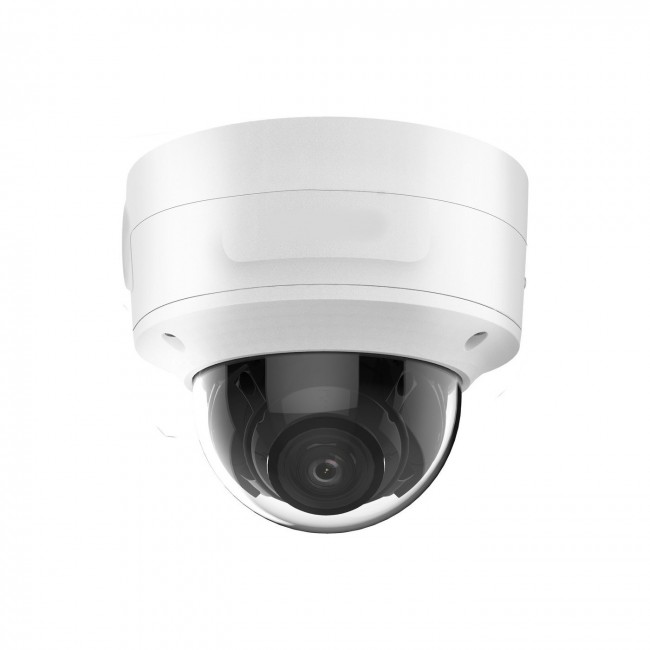

| MODEL | GNC358G2-VDZ |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8 - 12mm @ F1.6 Motorized Zoom |
| Lens Mount | M14 |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+ / H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Frame Rate | 60 Hz: 20 FPS (3840x2160, 3072x1728), 30 FPS (2688x1520, 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, HLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users: 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max.13W |
| Ingress Protection | IP67, IK10 |
| IR Range | Approx. 131 FT |
| Dimension | 6.0" x 5.2" |
| Weight | 5 LBS |
