Manufacturer: GNS

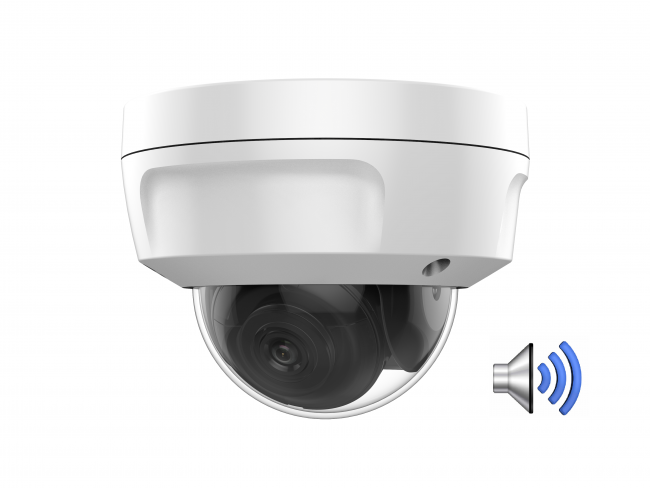

8MP Outdoor Dome IP Camera 4mm Lens (GNC328G2-TDU)

SKU: 181909
MPN: GNC328G2-TDU
$190.99
$260.99
GNC328G2-TDU features high-quality 8MP imaging and a 4mm Fixed Lens, built in a compact dome frame. Designed for reliable performance in outdoor settings.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
Lens4mm
Resolution4K 8MP
  • IP Outdoor EXIR Dome
  • Smart Motion Detection
  • Human And Vehicle Classification
  • H.265+ Video Compression
  • 8MP (3840x2160) Resolution
  • 4mm Fixed Lens
  • Approx. 100 FT IR Range
  • 120dB WDR
  • Built-in Microphone
  • Vandal Resistant, 3 Axis Design
  • DC12V, PoE

Details
MODEL GNC328G2-TDU
Camera
Image Sensor1/3" Progressive Scan CMOS
Min. Illumination0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Lens4mm @ F2.0, Angle of View: 102°
Lens MountM12
Angle AdjustmentPan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Day & NightIR Cut Filter
Digital Noise Reduction3D DNR
Wide Dynamic Range120dB
Compression Standard
Video CompressionH.265+/H.264+
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps - 16 Mbps
Bit Rate ControlCBR/VBR
Region of Interest (ROI)1 fixed region
Max. Resolution3840 x 2160
Main Stream20FPS (3840x2160, 3072x1728), 30FPS (2688x1520, 1920x1080)
Day/Night SwitchDay, night, auto, schedule
Image EnhancementsBLC, HLC, 3D DNR
Image SettingsRotate Mode, Saturation, Brightness, Contrast, Sharpness
Audio
Built-in MicrophoneYes
Environmental Noise FilteringYes
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Network
Simultaneous Live ViewUp to 6 Channels
APIONVIF (Profile S, Profile G), ISAPI, SDK
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP
User/HostUp to 32 Users, 3 User Levels:  administrator, operator, user
SecurityPassword protection, complicated password, https encryption, IP address filter
General
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F)
Power Supply12VDC, PoE (802.3af)
Power Consumption Max. 7.5W
Ingress ProtectionIP67, IK10
IR RangeApprox. 100 FT
Dimension 4.8" x 3.7"
Weight 2 LBS
