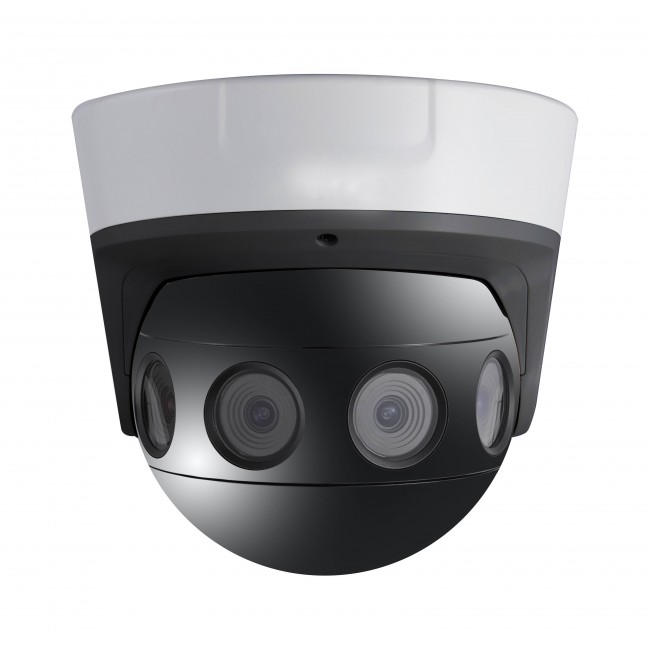

- 180° Stitched Multi Sensor Network Camera
- Smart Human Density Counting
- 8MP (3840x2160) Resolution
- 4 x 6mm Fixed Lens
- Horizontal FOV: 180°
- Vertical FOV: 25°
- Panorama + ePTZ Mode
- Digital WDR, IP67 Rated
- Built-in Heater
- Built-in Micro SD Card Slot
- Hi-PoE
- Pendant Cap Included
Details
| MODEL | NCA08-4M-6MM |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | 0.003 Lux @ (F1.2, AGC On) |
| Shutter Speed | 1/25 sec - 1/100,000 sec |
| Lens | 4 x 6mm Fixed Lens |
| Field of View | Horizontal FOV: 180°, Vertical FOV: 25° |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 90° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | Digital WDR |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 65 Mbps |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / AAC / PCM |
| Image | |
| Max Resolution | 3840 x 2160 |
| Main Stream |
Panorama + ePTZ Mode: 1920x1080 Panorama Mode: 3840x2160 Original Mode: 1920x1080 |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm in |
| Image Enhancements | BLC, 3D DNR, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| Interface | |
| Audio | 1 input (line in, 3.5mm), 1 output (line out, 3.5mm) |
| Communication | 1 RJ45 10/100/1000M self-adaptive ethernet |
| Alarm | 2 Inputs, 2 Outputs |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, Up To 256GB |
| General | |
| Protection Level | IK10, IP67 |
| Operating Conditions | -40°C - 60°C (-40°F - 140°F), Humidity 95% or less (non-condensing) |
| Power Supply | Hi-PoE, 30W |
| Dimensions | 7.46" x 8.17" x 8.13" |
| Weight | Approx 10 LBS |
Products specifications
| Technology | IP/Network |
