| Product Highlights | |
| Technology | IP/Network |
| Lens | 2.8mm |
| Resolution | 4K 8MP |
- 24/7 Full Time Color Bullet
- Human And Vehicle Classification
- Smart Hybrid Light with Colorvu
- H.265+ Video Compression
- 8MP (3840x2160) Resolution
- 2.8mm Fixed Lens
- 196 FT Visible Light Range
- 120dB WDR, IP67 Rated
- Built-in Micro SD Card Slot
- DC12V, PoE
Details

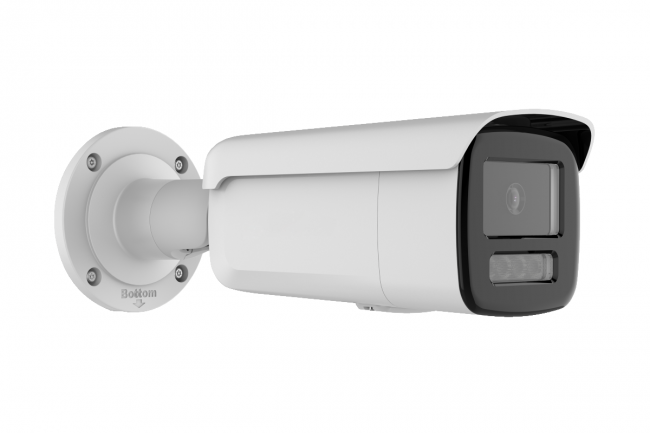

| MODEL | GNC348G2E-XB/LI-2.8 |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC On), 0.0 Lux with light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm @ F1.0 |
| Lens Mount | M16 |
| Angle Adjustment | Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360° |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Approximately 196FT |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | H.265+ / H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 Fixed Region |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | 24fps (3840x2160) 30fps (3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Sub Stream | 30fps (1280x720, 640x480, 640x360) |
| Day/Night Switch | Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Network | |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 Users: 3 User Levels: Administrator, Operator, User |
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 9.5W |
| Ingress Protection | IP67 |
| Dimension | 11.3" x 3.7" x 3.6" |
| Weight | 4 LBS |
