| Product Highlights | |
| Technology | IP/Network |
| Lens | 4mm |
| Resolution | 4K 8MP |

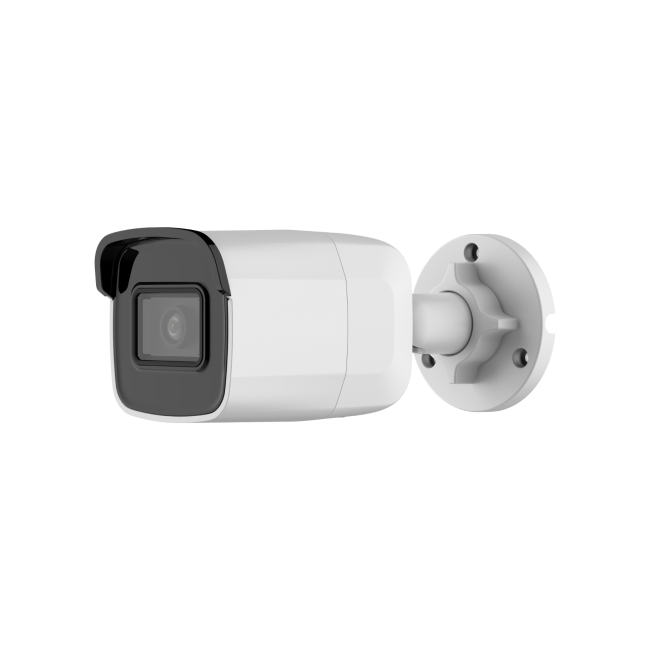

- IP Outdoor EXIR Bullet
- Smart Motion Detection
- Human And Vehicle Classification
- H.265+ Video Compression
- 8MP (3840x2160) Resolution
- 4mm Fixed Lens
- Approx. 131 FT IR Range
- 120dB WDR, IP67 Rated
- Built-in Micro SD Card Slot
- DC12V, PoE
Details
| MODEL | GNC328G2-MB |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 4mm @ F1.6, Angle of View: 105° |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+ / H.264 + |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 Fixed Region |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Frame Rate | 60 Hz: 20 FPS (3840x2160, 3072x1728), 30 FPS (2688x1520, 1920x1080) |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Network | |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 Users: 3 User Levels: Administrator, Operator, User |
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 7W |
| Ingress Protection | IP67 |
| IR Range | Approx. 131 FT |
| Dimension | 6.37” x 2.76” |
| Weight | 1 LBS |
