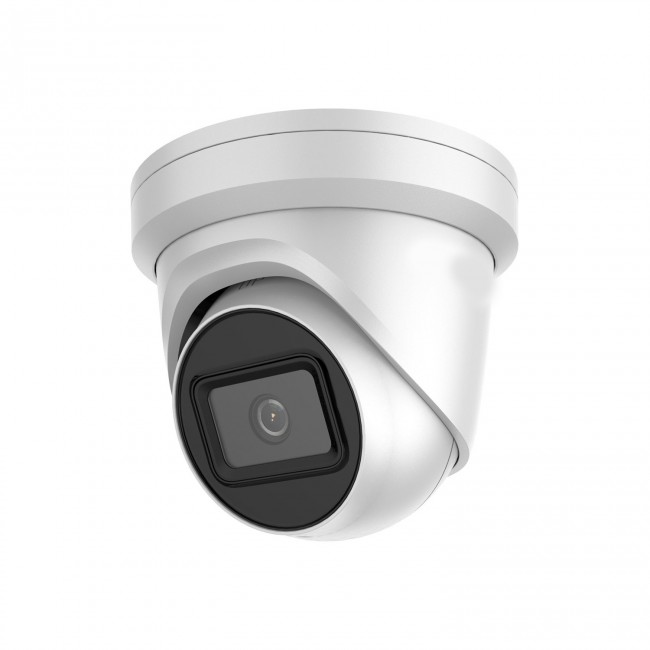

- IP Outdoor EXIR Turret
- Smart Motion Detection
- Human And Vehicle Classification
- H.265+ Video Compression
- 6MP (3200x1800) Resolution
- 2.8-12mm Motorized Lens
- Approx. 131 FT IR Range
- 120dB WDR, IP67 Rated
- 3 Axis Design
- DC12V, PoE
Details
| MODEL | GNC326G2-XDZ |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8-12mm Motorized Lens |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+ / H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 Fixed Region |
| Image | |
| Max. Resolution | 3200 x 1800 |
| Frame Rate |
60 Hz: 20fps (3200 x 1800), 30fps (2688 x 1520, 1920 x 1080) |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate, Mirror, Privacy Masks, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Network | |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 Users: 3 User Levels: Administrator, Operator, User |
| Security | Password Protection, Complicated Password, HTTPS Encryption, IP Address Filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 12.5W |
| Ingress Protection | IP67 |
| IR Range | Approx. 131 FT |
| Dimension | 5.4" x 5" |
| Weight | 3 LBS |
Products specifications
| Technology | IP/Network |
