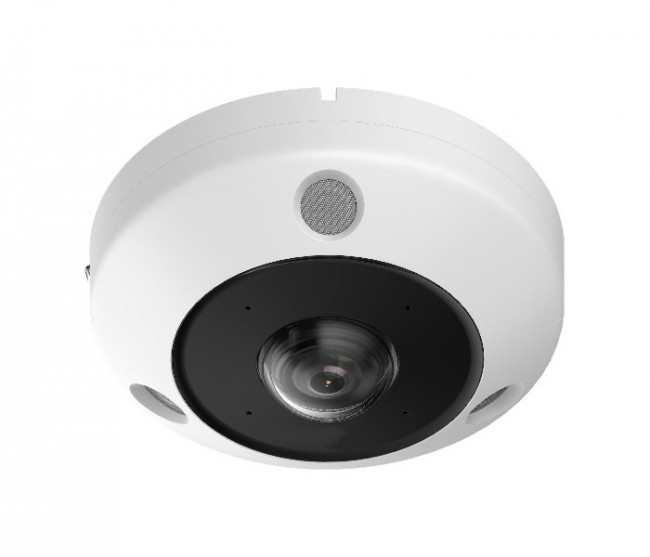

- IP 360° Fisheye Camera
- People Counting, Heat Map
- 6MP (2560x2560) Resolution
- 360° Viewing Angle
- Virtual PTZ
- Approx. 50 FT IR Range
- Multiple Viewing Modes
- Built-in Microphone & Speaker
- DC12V, PoE
Details
| MODEL | GNCA26-FEA |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F2.25, AGC On), 0.0 Lux with IR |
| Lens | 1.16mm |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB WDR |
| Shutter Speed | 1 Sec - 1/100,000 Sec |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Image | |
| Max. Image Resolution | 2560 x 2560 |
| Main Stream |
Fisheye View: 30 fps (2560x2560) 180 Panorama View: 30 fps (2048x1536) |
| Sub Stream |
Fisheye View: 30 fps (720x720) 180 Panorama View: 30 fps (640x480) |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm |
| Image Enhancements | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, https encryption, IP address filter |
| Interface | |
| Ethernet | 1 RJ45 10/100/1000M self adaptive |
| Audio | Built-in microphone, built-in speaker |
| Alarm | 2-ch alarm input, 2-ch alarm output |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot |
| General | |
| Operating Conditions | -40°F ~ 140°F |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 15W |
| IR Range | Approx. 50 FT |
| Dimension | 5.5" x 2.3" |
| Weight | Approx. 2 LBS |
Products specifications
| Technology | IP/Network |
