| Product Highlights | |
| Technology | IP/Network |
| Resolution | 5MP |

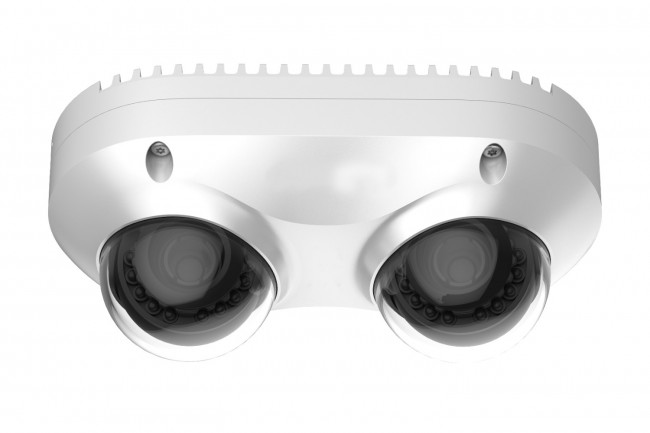

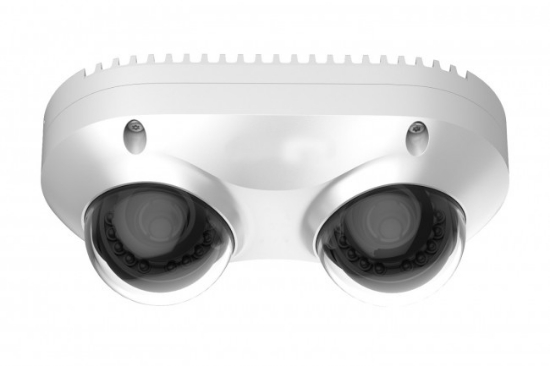

- Multi-Sensor Network Camera
- Dual Directional Lenses
- 5MP (2560x1920) Resolution
- 2.8mm Fixed Lens
- Approximately 30FT IR Range
- 120dB WDR, IP67 Rated
- Vandal Resistant
- Built-in MicroSD Card Slot
- PoE, DC12V
Details
| MODEL | NCA052-A/M |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009 Lux @ (F1.6, AGC On) |
| Shutter Speed | 1 sec - 1/100,000 sec |
| Lens | 2.8mm x 2 |
| Field of View | Horizontal FOV: 97°, Vertical FOV: 70°, Diagonal FOV: 128° |
| Angle Adjustment | Pan: -90° to 90°, Tilt: 0° to 60° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 4 fixed regions |
| Image | |
| Max Resolution | 2560 x 1920 |
| Frame Rate | 30FPS (2560x1920, 2048x1536) |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm |
| Image Enhancements | BLC, HLC, EIS, 3D DNR |
| Image Settings | Saturation, birghtness, contrast, sharpness |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| Interface | |
| Audio | 2 Built-in Mics, 1 Line In, 1 Line Out |
| Communication | 1 RJ45 10/100M self adaptive |
| Alarm | 1 Input, 1 Output (maximum 36VDC, 30mA) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, Up To 256GB |
| General | |
| Impact Protection | IK10, IP67 |
| Operating Conditions | -40°F - 140°F, Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | 11W |
| Dimensions | 6.5" x 3.3" x 2.7" |
| Weight | Approx 2 LBS |
