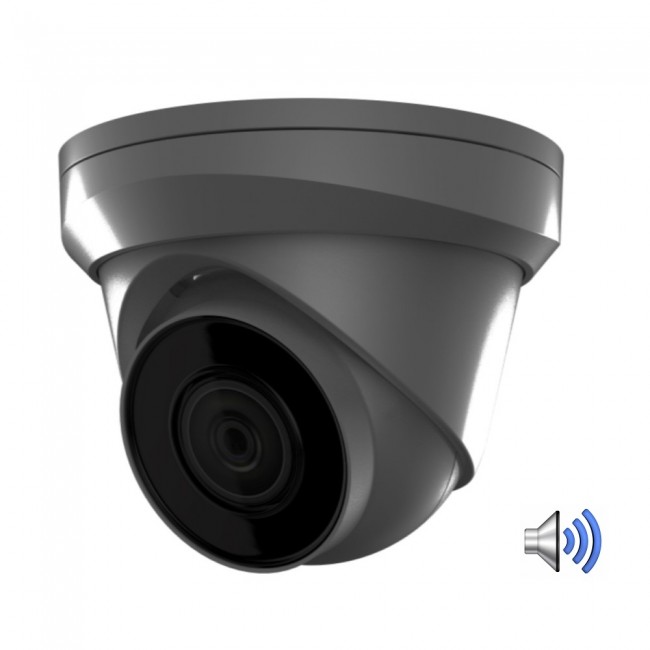

- IP Outdoor EXIR Turret
- 4MP (2560x1440) Resolution
- 2.8mm Fixed Lens
- Approx.100 FT IR Range
- 120dB WDR
- 3 Axis Design
- IP67 Rated
- Built-in Microphone
- DC12V, PoE
Details
| Model | GNC224-XD-G/U-2.8 |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm @ F2.0, Angle of View: 103° |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360° |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB WDR |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Image | |
| Max. Resolution | 2560 x 1440 |
| Frame Rate |
50 Hz: 20 FPS (2560x1440, 2304x1296, 1920x1080) 60 Hz: 20 FPS (2560x1440, 2304x1296, 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, 3D DNR |
| Image Settings | Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 122°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 6.5W |
| Ingress Protection | IP67 |
| IR Range | Approx. 100 FT |
| Dimension | 4.3" x 3.5" |
| Weight | 1 LBS |
Products specifications
| Technology | IP/Network |
| Lens | 2.8mm, 2.8mm |
