Manufacturer: GNS

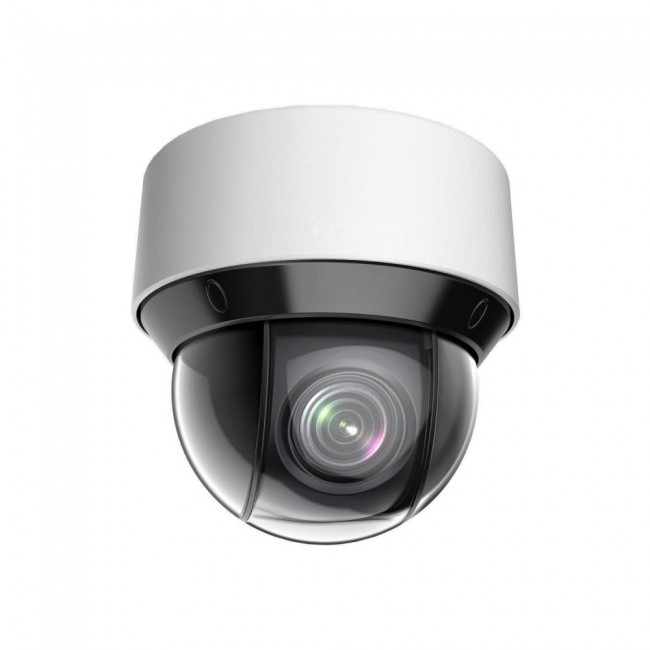

4MP Indoor IR PTZ IP Camera PTZ (GNP1A24-IR-25X)

SKU: 181974
MPN: GNP1A24-IR/25X
$710.99
$980.99
Built for performance and clarity, the model GNP1A24-IR-25X features Network Outdoor IR Compact PTZ, 4MP, Indoor IR, PTZ, PTZ. This camera delivers exceptional IP surveillance performance for homes or businesses.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
TechnologyIP/Network
Resolution4MP
  • Network Outdoor IR Compact PTZ
  • DarkFighter Ultra Low Light
  • H.265+ Video Compression
  • 4MP (2560x1440) Resolution
  • 25x Optical Zoom, 16x Digital Zoom
  • Approx 165FT IR Range
  • 120dB WDR, IP66 Rated
  • Built-in Micro SD Card Slot
  • PoE, DC12V

Details
Model GNP1A24-IR/25X
Camera
Max Resolution2560 x 1440
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR
Shutter Speed1/1 sec to 1/30,000 sec
Day/NightIR Cut Filter
WDR120dB
Main Stream60Hz: 30FPS (2560x1440, 1920x1080, 1280x960)
Sub-Stream60Hz: 30FPS (704x480, 640x480, 352x240)
Video CompressionH.265+/H.264+
Lens
Zoom25x Optical, 16x Digital
Focal Length4.8mm to 120mm
Zoom SpeedApprox 3.4 sec
Field of View

Horizontal FOV: 53.3° to 2.6° (wide-tele)

Vertical FOV: 30.6° to 1.5° (wide-tele)

Diagonal FOV: 60.5° to 3° (wide-tele)

ApertureF1.6
FocusAuto, semi-auto, manual
Illuminator
Supplement Light TypeIR
Supplement Light RangeApprox 164FT
PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-5° to 90°
Pan SpeedConfigurable 0.1° to 300°/sec; Preset Speed: 350°/sec
Tilt SpeedConfigurable 0.1° to 160°/sec; Preset Speed: 200°/sec
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Interface
Ethernet1 RJ45 10M/100M self adaptive
On-board StorageBuilt-in memory card slot, up to 256GB
Alarm2 inputs, 2 outputs
Audio1 input (line in); 1 output (line out)
Hard ResetYes
Network
Simultaneous Live ViewUp to 20 channels
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS
APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users, 3 user levels: administrator, operator, user
SecurityPassword protection, complicated password, https encryption, IP address filter
General
Working Temperature-30°C ~ 65°C (-22°F ~ 149°F)
PowerPoE (802.3at), Max 18W
Protection LevelLightning protection, surge protection, voltage transient protection, IP66
Dimension 6.65" x 6.34"
Weight Approx 10 LBS
