| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4MP |
| Lens | Motorized Lens |

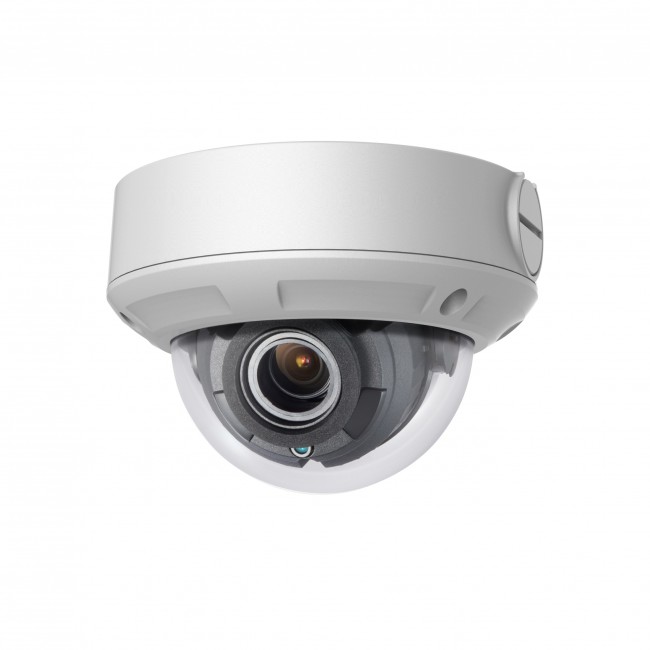

- IP Outdoor EXIR Dome
- 4MP (2560x1440) Resolution
- 2.8-12mm Motorized Zoom Lens
- Approx.100 FT IR Range
- 120dB WDR
- Vandal Resistant, 3 Axis
- DC12V, PoE
Details
| MODEL | GNC224-VDZ |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux @ (F1.6, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8 - 12mm @ F1.6 Motorized Zoom |
| Lens Mount | M14 |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB WDR |
| Compression Standard | |
| Video Compression | H.265+/H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Image | |
| Max. Resolution | 2560 x 1440 |
| Frame Rate | 50 Hz: 20 FPS (2560x1440), 25 FPS (1920x1080), 25 FPS (1280x720) 60 Hz: 20 FPS (2560x1440), 30 FPS (1920x1080), 30 FPS (1280x720) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 11W |
| Ingress Protection | IP67 |
| IR Range | Approx. 100 FT |
| Dimension | 5.6" x 3.9" |
| Weight | 5 LBS |
