| Product Highlights | |
| Technology | IP/Network |
| Lens | 2.8mm |
| Resolution | 4MP |

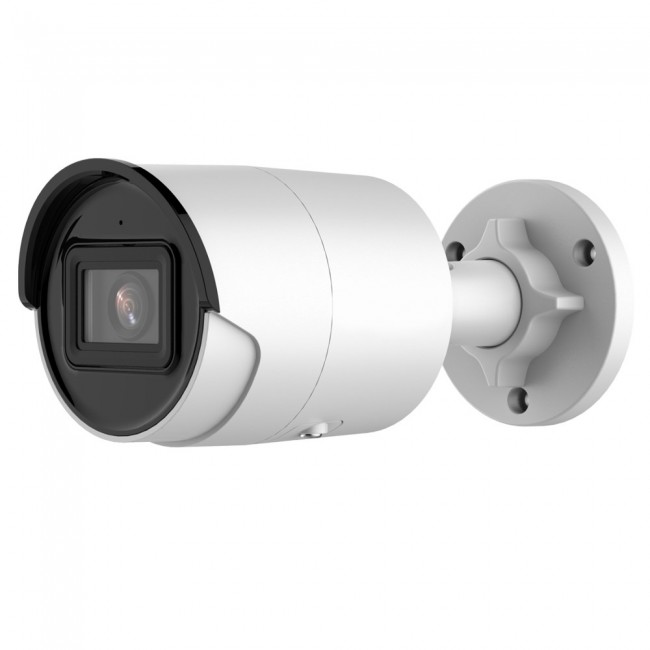

- DarkFighter Low Light Bullet
- False Alarm Filter By Target Classification
- Human and Vehicle Classification
- Smart Perimeter Protection
- 4MP (2688x1520 Resolution)
- 2.8mm Fixed Lens
- 131FT IR Range
- 120dB WDR, IP67 Rated
- Built-in Micro SD Card Slot
- DC12V, PoE
Details
| MODEL | GNC354G2-MB-2.8 |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm Fixed Lens, FOV 123º |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | H.265+ / H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region |
| Image | |
| Max. Resolution | 2688 x 1520 |
| Frame Rate | 50 Hz: 25 FPS (2688x1520, 2304x1296, 1920x1080) 60 Hz: 30 FPS (2688x1520, 2304x1296, 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, HLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users: 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max.7W |
| Ingress Protection | IP67 |
| IR Range | Approx. 131 FT |
| Dimension | 6.4" x 2.8" |
| Weight | 2 LBS |
