| Product Highlights | |
| Technology | IP/Network |
| Resolution | 4MP |
- 24/7 Full Time Color Bullet
- Smart Motion Detection
- Human And Vehicle Classification
- Active Strobe Light and Audible Alarm
- H.265+ Video Compression
- 4MP (2688x1520) Resolution
- 2.8mm Fixed Lens
- 130dB WDR, IP67
- 2 Way Audio
- Built-in Microphone & Speaker
- DC12V, PoE
Details

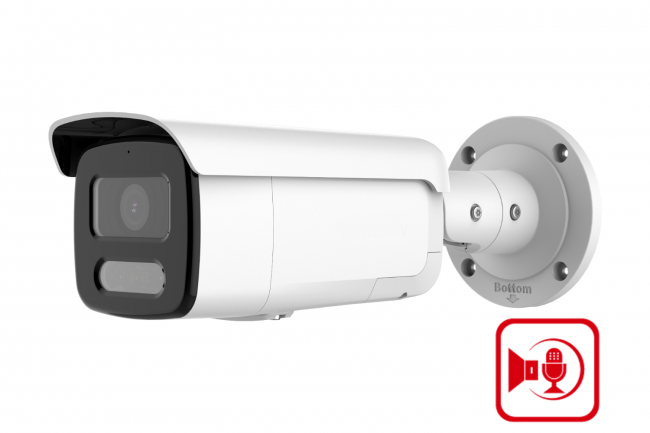

| MODEL | GNC344G2-XBLU/SL-2.8 |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC On), 0.0 Lux with Light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm @ F1.0 |
| Lens Mount | M16 |
| Angle Adjustment | Pan: 0° - 360°, Tilt: 0° - 90°, Rotation: 0° - 360° |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 130dB |
| Compression Standard | |
| Video Compression | H.265 /H.264+ |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region |
| Image | |
| Max. Resolution | 2688 x 1520 |
| Frame Rate | 50 Hz: 25 FPS (2688x1520, 1920x1080, 1280x720) 60 Hz: 30 FPS (2688x1520, 1920x1080, 1280x720) |
| Day/Night Switch | Day, night, auto, schedule |
| Image Enhancements | BLC, HLC, 3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, https encryption, IP address filter |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 11W |
| Ingress Protection | IP67 |
| Visible Light Range | Approx. 100 FT |
| Dimension | 11.5" x 4.1" |
| Weight | 2 LBS |
