Manufacturer: LTS Security

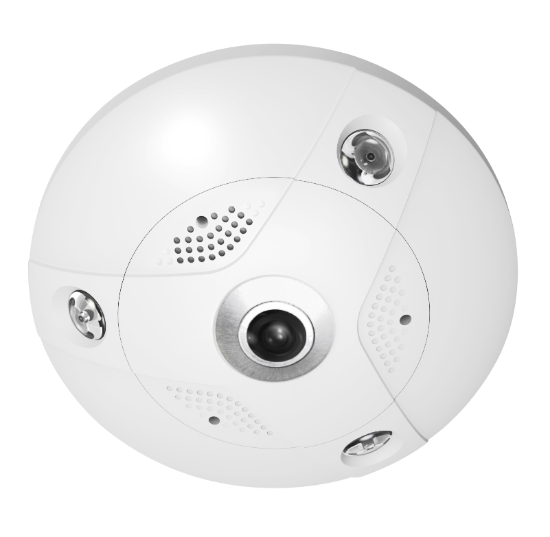

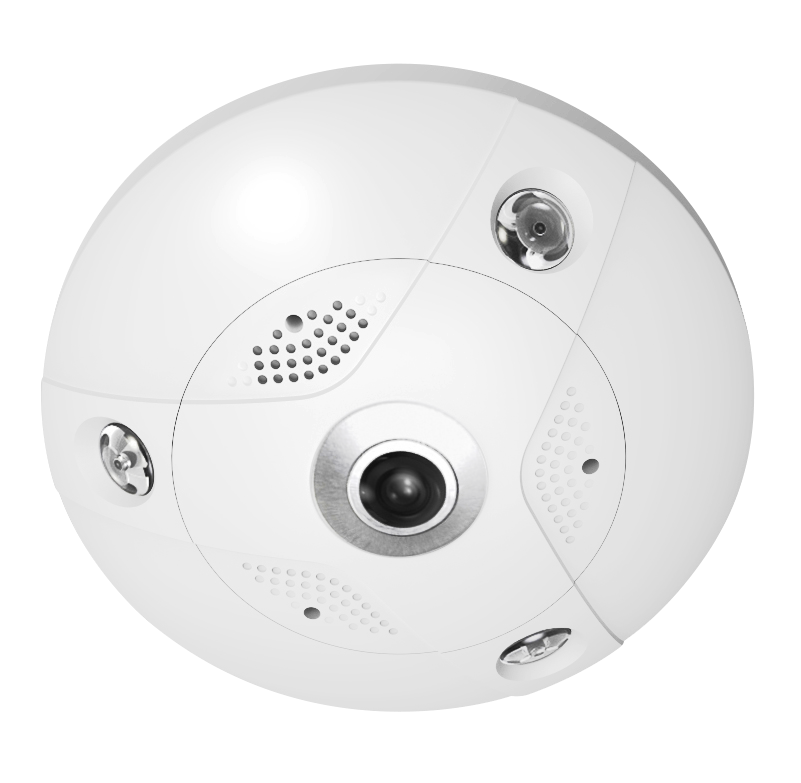

3MP 360 IR Fisheye IP Camera (CMIP7532FW)

1 review(s)
SKU: 121682
MPN: CMIP7532FW
$399.99
$469.99
360 Degree 3MP Fisheye IP security Camera, with resolution up to 2048 x 1536 and a complete 360° view for up to 33ft IR all around nigh-vision coverage.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Lens360° FishEye
Resolution3MP
Camera FeaturesWDR
TechnologyIP/Network
  • 1/3” sensor
  • 3 megapixel image sensor
  • Up to 2048 x 1536 real-time streaming
  • 120dB wide dynamic range
  • 360°view angel
  • Multiple viewing modes
  • Multiple ePTZ streams with preset and
  • patrol functions
  • Up to 33ft(10m) IR range



CMIP7532FW
Image Sensor 1/3"Sensor
Min. Illumination0.1Lux @ (F1.2,AGC ON),0.6Lux @ (F2.8,AGC ON )
0 lux with IR
Shutter Speed1/25 s to 1/100,000 s
Slow ShutterSupport
Lens1.19mm @F2.0, angle of view: 360°
Lens mount  M12
Day & NightICR
Digital Noise Reduction3D DNR
Wide dynamic range120dB WDR
Compression Standard
Video CompressionH.264/MPEG4/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
Video Bit Rate32 Kbps-16 Mbps
Audio CompressionG.711/G.726/MP2L2
Audio Bit Rate64Kbps(G.711) / 16Kbps(G.726) / 64Kbps (MP2L2)
Max Resolution2048×1536
Frame Rate

High-frame Mode: support
50Hz: 1 x fisheye (2048 x 1536, 25fps) or (1536 x 1536, 25fps) or
4 x PTZ (800 x 600, 25fps)
60Hz: 1 × fisheye (2048*1536, 30fps) or (1536 × 1536, 30fps) or
4 × PTZ (800 × 600, 30fps)
Multi-channel Mode: support
50Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic
(1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps)
60Hz: 1 x fisheye (1536 × 1536, 20fps) and 1 x panoramic
(1600 x 1200, 20fps) and 3 x PTZ (800 x 600, 20fps)

Image SettingSaturation, Brightness, Contrast adjust by client software or web browser
Backlight CompensationBacklight Compensation
Day/night SwitchAuto / Schedule / Alarm trigger
Network
Network StorageNAS
Alarm triggerMotion detection, dynamic analysis, tamper alarm, network disconnect,
IP address conflict,storage full, storage error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
SecurityUser Authentication, Watermark, IP address filtering, Anonymous access
StandardONVIF, PSIA, CGI
Interface
Communication Interface1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
On-board storageBuilt-in Micro SD/SDXC slot, up to 64 GB
General
Working Temperature
/Humidity		-22°F - 140°F(-30 °C - 60 °C()
Humidity 95% or less (non-condensing)
Power Supply12V DC/ PoE
Power ConsumptionMax.11W
IR rangeMax. 33ft(10m)
ProtectionIEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155
Dimension 164x152.8x45.5mm (6.46"x6.02"x1.79")
Weight1.7lb(800 g )
