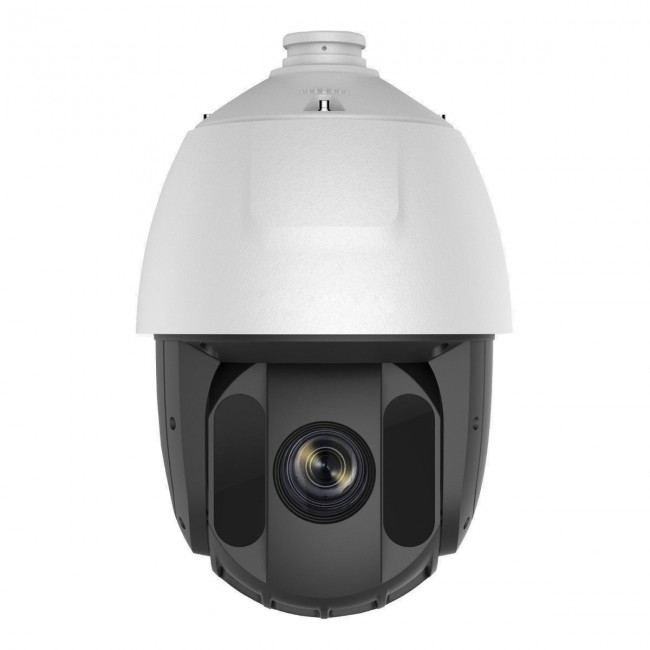

- IP Outdoor IR Smart PTZ
- Smart Tracking, Smart Detection
- Region Entrance/Exiting Trigger
- 2MP (1920x1080) Resolution
- 50x Optical Zoom,16x Digital Zoom
- Approx. 1000FT IR Range
- 120dB WDR
- IK10 Vandal Resistant
- AC24V, High-PoE
Details
| Model | NP512A-IR/50X |
| Camera | |
| Max Resolution | 1920 x 1080 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color 0.05 Lux @ (F1.8, AGC On), 0 Lux with IR On |
| Shutter Time | 1/1 sec to 1/30,000 sec |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Main Stream | 60Hz: 30FPS (1920x1080, 1280x960, 1280x720) |
| Image Stabilization | Optical image stabilization |
| Shutter Time | 1 Sec - 1/30,000 Sec |
| Lens | |
| Zoom | 50x Optical, 16x Digital |
| Focal Length | 6.6mm to 330mm |
| Field of View |
Horizontal FOV: 41.3° to 1.1° (wide-tele) Vertical FOV: 23.6° to 0.6° (wide-tele) Diagonal FOV: 47.4° to 1.3° (wide-tele) |
| Zoom Speed | Approx 4.5 sec (optical lens, wide-tele) |
| Working Distance | 10mm to 1500mm (wide-tele) |
| Aperture Range | F1.8 to F5.5 |
| IR | |
| IR Distance | Approx 1640FT |
| PTZ | |
| Movement Range (Pan) | 360° Endless |
| Pan Speed | Configurable: 0.1°/s to 160°/s, Preset: 240°/s |
| Movement Range (Tilt) | -20° to 90° |
| Tilt Speed | Configurable: 0.1° to 120°/s, Preset: 200°/s |
| Presets | 300 |
| Patrol Scan | 8 Patrols, Up to 32 presets per patrol |
| Pattern Scan | 4 pattern scans |
| Interface | |
| Alarm In/Out | 7/2 |
| Audio | 1 Audio input, 1 audio output |
| Network | 1 RJ45 10/100M Hi-PoE |
| RS-485 | Half duplex, Pelco-P, Pelco-D, self adaptive |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (Profile S, Profile G), ISAPI |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, user |
| Security | Password protection, https encryption, IP address filter |
| General | |
| Power | 24VAC, Hi-PoE (Max 60W) |
| Working Temperature | -40°C ~ 70°C (-40°F ~ 149°F) |
| Protection Level | IP67, IK10, TVS 6,000V lightning, surge, voltage transient protection |
| Dimension | 10.50" x 16.14" |
| Weight | Approx 20 LBS |
Products specifications
| Technology | IP/Network |
| Resolution | 2MP/1080p, 2MP/1080p |
