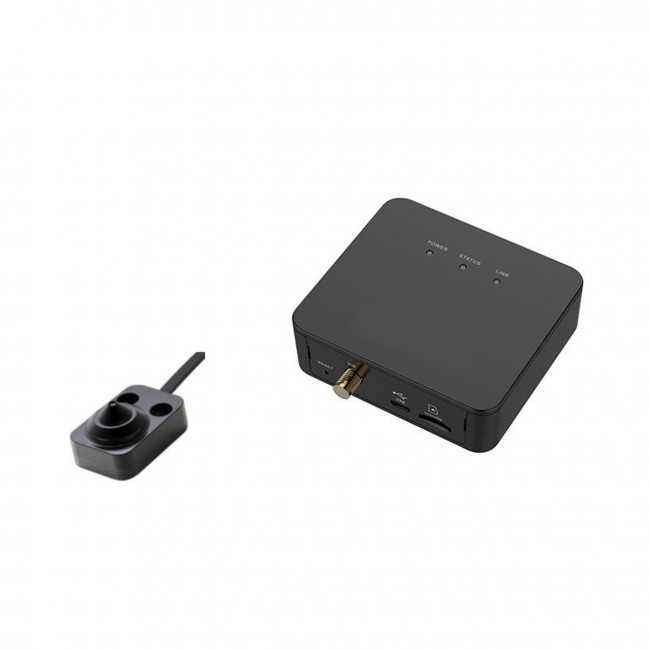

- IP Covert Pinhole Camera
- 2 MP (1920x1080) Resolution
- 3.7mm PinholeLens
- Built-in Micro SD Card Slot
- Audio Line In/Out
- L-Shaped Sensor Unit
- PoE, DC12V
Details
| MODEL | GNCA22-PHL |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC On) |
| Lens | 3.7mm Pinhole Lens |
| Day & Night | Electronic |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120 dB |
| Shutter Time | 1/3 Sec - 1/100,000 Sec |
| Compression Standard | |
| Video Compression | H.265 / H.264 |
| H.264 Codec Profile | Baseline Profile / Main Profile / High Profile |
| Bit Rate Control | CVR / BVR |
| Region of Interest (ROI) | 1 Fixed Region for Main Stream |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate |
60 Hz: 30 FPS (1920x1080, 1280x720) |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Simultaneous Live View | Up to 15 Channels |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| API | ONVIF, ISAPI, SDK, ISUP 5.0 |
| User/Host | Up to 32 Users: 3 Levels: Administrator, Operator, User |
| Interface | |
| Communication Interface | (1) RJ45 10/100 M Ethernet Interface |
| On Board Storage | Built-in Memory Card Slot |
| Audio | 1 Input (Line In), 1 Output (Line Out) |
| Alarm | 1 Input, 1 Output (Max 12VDC, 30mA) |
| General | |
| Operating Conditions | 40°F ~ 120°F |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 4W |
| Dimension | 3.1” × 2.7” x 1.0" |
| Weight | 2 LBS |
Products specifications
| Technology | IP/Network |
| Resolution | 2MP/1080p, 2MP/1080p |
