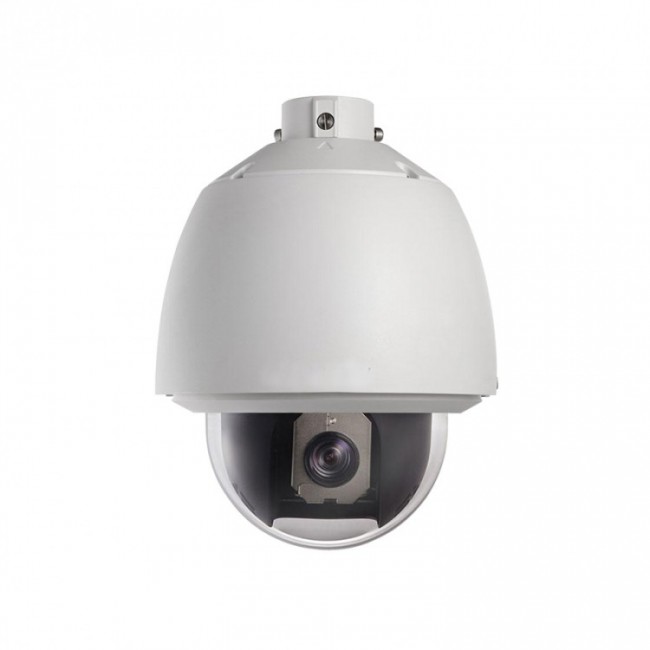

- IP Outdoor PTZ Camera
- Intrusion Detection
- Line Crossing Detection
- 2MP (1920x1080P) Resolution
- 25
- x Optical Zoom,16x Digital Zoom
- 3D Intelligent Positioning
- Day/Night With ICR
- 120dB WDR
- Privacy Mask
- AC24V, PoE+
Details
| Model | GNP312-OD/25X |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC On) B/W: 0.001 Lux @ (F1.6, AGC On) |
| Max. Resolution | 1920 x 1080 |
| Focal Length | 4.8 - 120mm, 25x Optical |
| Digital Zoom | 16x |
| Aperture Range | F1.6 - F3.5 |
| Focus Mode | Auto / Semiautomatic / Manual |
| Wide Dynamic Range | 120dB |
| Shutter Time | 1/1 Sec - 1/30,000 Sec |
| Day/Night | IR Cut Filter |
| Privacy Mask | 8 Programmable Zones |
| Pan and Tilt | |
| Range | Pan: 360° Endless; Tilt: -5° - 90° (Auto Flip) |
| Speed | Pan: 0.1° - 250° / s; Tilt: 0.1° - 150° / s |
| Number of Preset | 300 |
| Patrol | 8 Patrols, Up to 32 presets per patrol |
| Park Action | Preset / Patrol / Pattern / Pan Scan / Tilt Scan / Random Scan |
| Input/Output | |
| Audio Input | 1 Mic in/Line in interface |
| Audio Output | 1 Audio output interface |
| Network | |
| Ethernet | 1 RJ45 10M/100M Ethernet |
| Main Stream | 60Hz: 30FPS (1920x1080, 1280x960, 1280x720) |
| Sub Stream | 60Hz: 30FPS (704x480, 640x480, 352x240) |
| Image Compression | H.265+ |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS |
| Simultaneous Live View | Up to 20 users |
| General | |
| Application Programming | API, ONVIF, PSIA and CG |
| Web Browser | IE 8 to 11, Chrome 31 to 44, Firefox 30 to 51 |
| Working Temperature | -30°C ~ 65°C (-22°F ~ 149°F) |
| Power Supply | 24VAC, PoE+ (802.3at), Max. 22W |
| Protection Level | IP66, TVS 4,000V lightning, surge, voltage transient protection |
| Mount Option | Wall Mount (WMP-L), Pendant Mount (CPM-L), Corner Mount (CMP), Pole Mount PMP) |
| Dimension | 8.66" x 11" |
| Weight | Approx 10 LBS |
Products specifications
| Technology | IP/Network |
| Resolution | 2MP/1080p, 2MP/1080p |
