16 HD 5MP Bullet Camera System Package

SKU: 121797

Accepted Payments

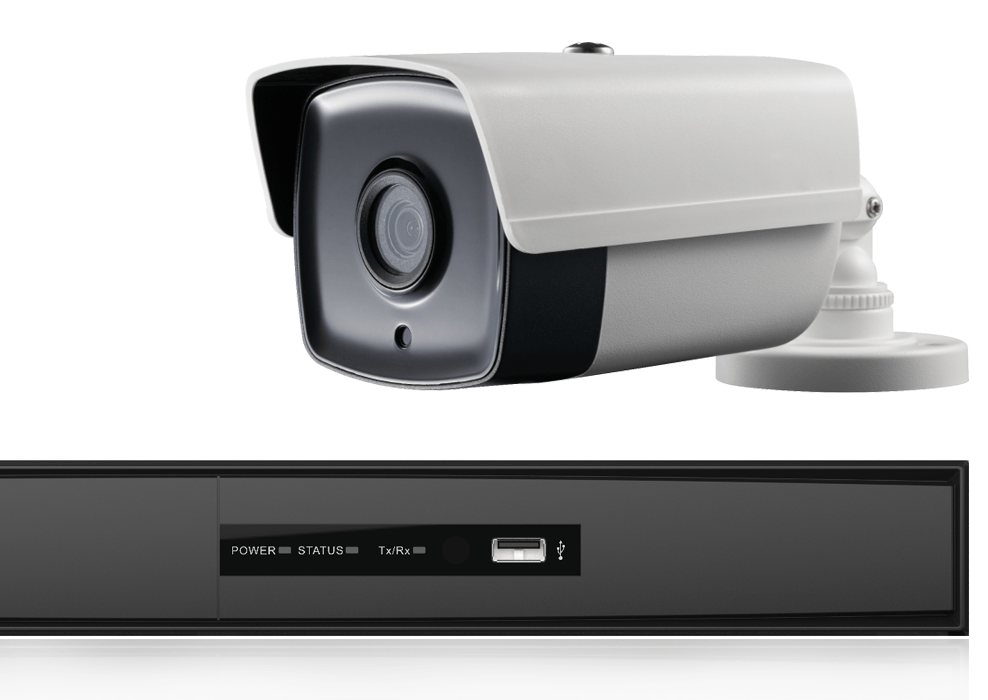

State of the art complete ultra high definition bullet security camera system, with 16 bullet weather proof cameras at 2560 × 1944 resolution, ultra-wide 2.8mm lens and the new EXIR 2.0, smart IR, for up to 40 m IR night vision distance, equipped with 2D DNR, DWDR for vibrant image quality in multiple lighting conditions. with 16Ch up to 8MP over coax DVR with support for additional 16 IP cameras to combine 32 cameras.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)

Limited time offer, 18Ch Power box Included


Complete bullet security camera system for medium to large businesses and homes, completely weather proof with ultra-high def 5MP picture quality, smart IR technology and a DVR that supports up to 8MP and up to 32Ch combined IP and coax.



  • 5MP high-performance COMS
  • 2560 × 1944 resolution
  • 2.8 mm fixed lens
  • EXIR 2.0, smart IR, up to 40 m IR distance
  • OSD menu, 2D DNR, DWDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67




Image Sensor 5 MP CMOS image sensor
Minimum Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Electronic Shutter PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Video Resolution

2560 (H) × 1944 (V)

Video Frame Rate

PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps

Focal Length 2.8 mm
Angle of View 85.5°
Day / Night IR cut filter
Day / Night Mode Auto/Color/BW (Black and White)
Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Wide Dynamic Range DWDR
Digital Noise Reduction 2D DNR
IR Distance 40m
White Balance ATW/MWB
General Function

Brightness, Sharpness, DNR , Mirror, Smart IR

Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
Operating Temperature -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Supply 12 VDC±15%
Power Consumption Max. 4.3 W
Ingress Protection IP67
Dimensions 86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.67")
Weight Approx. 680 g (1.5 lb.)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Extremely happy
this system was plug and play, easy to install, the image quality is amazing and it works flawlessly on your mobile devices.
From: Guest | Date: 5/22/2020 2:53 PM
Was this review helpful? Yes No (0/0)
Products specifications
Technology HD-TVI
Number of Cameras 16 Cameras
Resolution 5MP
