KEY FEATURES
- Pentaplex Operation Performance (Live, Recording, Playback, Backup, Network)
- 16CH HD-SDI (SMPTE 292M) Video input.
- 1080P / 720P video compression.
- Various Recording mode. (Manual / Schedule / Event)
- Various Search functions. (Date/Hour search, Calendar search, Event Search)
- Various Playback functions. (Normal / Fast / Slow / Step / Reverse / Smart / Panorama / Repeat)
- Digital Zoom in Playback.
- Gigabit Network.
- Support 16channel Audio.
- Support Mouse control.
- E-mail function (Alarm, Motion detection, Video loss, HDD fail end etc)
SPECIFICATIONS

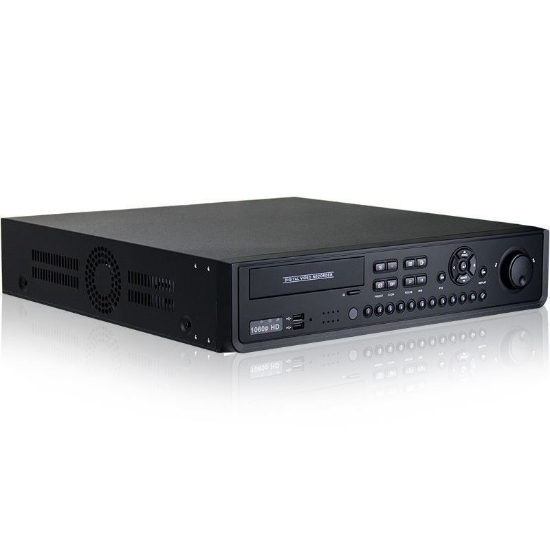

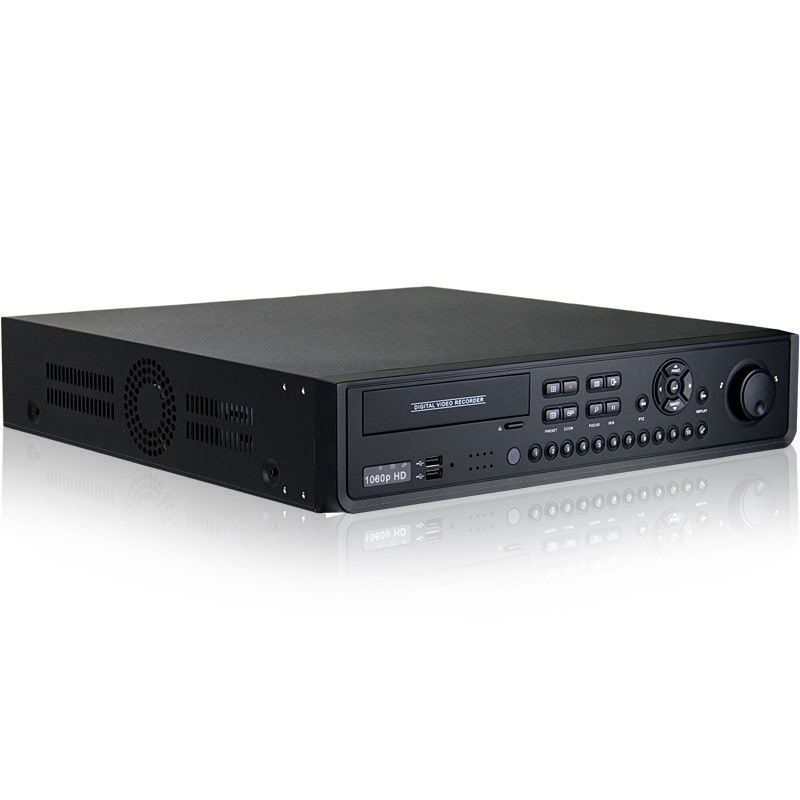

| XVST HTS-1600 | ||
| Performance | PENTAPLEX | |
| Display Speed | Real-Time | |
| Recording Speed | 120 fps (1080p) / 240 fps (720p) | |
| Video In | Channel | 16Ch (BNC) |
| Signal Level | HD – SDI (SMPTE 292M) | |
| Video Out | Main Display | HDMI |
| Main Display Resolution | 1920x1080 (P), 1920x1080 (I) , 1280x720 (P), 1440x900 | |
| Sub Display | VGA | |
| SPOT | HDMI | |
| Audio | Input / Output | 16/1 |
| Alarm | Input / Output | 16/4 |
| Screen | Display Split | 1, 4, 7, 9, 10, 13, 16 |
| Interface | Graphic User Interface | |
| Video | Format / Codec | Auto Detection / H.264 Advanced |
| Interface | Highest / High / Normal / Low | |
| Recording type | Schedule / Continuous / Event (Motion, Alarm) | |
| Storage | Interface type | SATA II / Up to 6 HDD"s / E-sata |
| RAID | RAID 0/1/5 JBOD | |
| Connectors | USB port | USB port × 2 |
| Live Display | OSD | On / Off |
| Border Color / D. Zoom | Selectable / Up to 4× | |
| Cameo | Camera adjustment & position change / Freeze / Audio on | |
| Motion | Area | Adjustable GRID (22 × 15) |
| Sensitivity | 5 Level motion detection | |
| System | Hidden Video | Video is hidden in Live view but it is recorded |
| PTZ | Supported recent PTZ camera protocol / Preset up to 255 / RS 485 / RS 232 | |
| Private Zone | Block the private zone in live camera view | |
| Auto Time Sync | By NTP(Network Time Protocol) | |
| Firmware Upgrade | Via USB & Auto firmware upgrade via Network | |
| Smart Alarm | Auto Detect & Monitoring HDD’s problem | |
| Event | Source | Motion / Alarm In / Video loss |
| Action | Recording, e-Mail notification, Log file, Send message to Remote, Buzzer, Pop Up Window, Alarm, PTZ preset | |
| Pre/Post Alarm | Yes (Up to 60 sec / Up to 100 sec) | |
| Record | Resolution | SMPTE 292M (1080p or 720p) |
| Quality | 4 Levels ( Low / Normal / High / Highest ) | |
| Search | Speed | ×1, ×2, ×4, ×8, ×16 |
| Quick / Event search | Search by time with calendar / Search by event | |
| Repeat search | Select specific time period and playback repeatedly | |
| Panorama search | Frame by frame | |
| Museum search | Search by selected area | |
| CAMEO | Live monitoring during playback, Playback camera change, Freeze and Digital zoom | |
| Backup | File format | DVR format |
| Media | DVD / USB device | |
| Network | Protocol | Static IP, DHCP, DDNS |
| Physical / Mac Layer | RJ45 (10/100/1000 Mbps), Ethernet | |
| Browser | SMS, Web Viewer, Smart Phone Viewer (Android, I-phone, I-pad) | |
| Operating Temperature / Humidity | 0~40° / 20~80% RH | |
| Dimensions / Weight | 430(W) × 443(D) × 88(H) / 8Kg | |
| Power Requirement / Consumption | AC 100V ~ 220V (50Hz ~ 60Hz) / 200W | |
Products specifications
| Number of Channels | 16Ch |
| Technology | HD-SDI |
