16H HD-SDI 1080p Security MAGIC Lite DVR (XVST-MAGIC-L16) 16H HD-SDI 1080p Security MAGIC Lite DVR (XVST-MAGIC-L16)

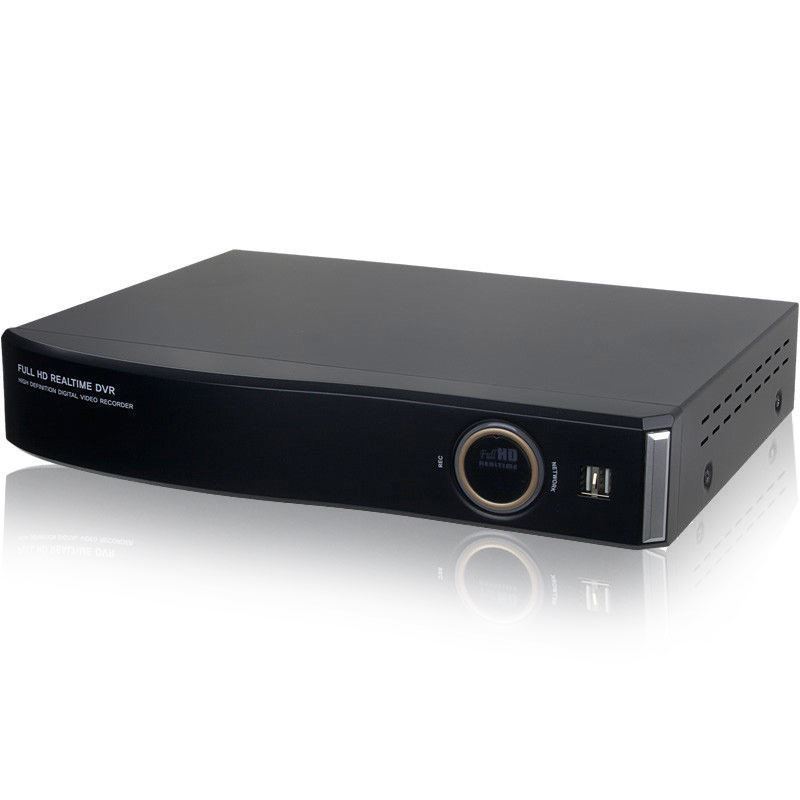

16H HD-SDI 1080p Security MAGIC Lite DVR (XVST-MAGIC-L16)

SKU: 141698
MPN: XVST-MAGIC-L16
1 review(s) | Add your review
4.0 1

storage calculator

Call for price

Accepted Payments

XVST-MAGIC-L16 A great 16Ch HD-SDI / Analog DVR, with auto detect technology that all you have to do is connect your camera to, 16Ch 1080p HD-SDI or analog up to 960h Cameras, HDMI and spot out, with H.264 compression and support for Mac and PC, this Hybrid SDI/Analog DVR would make a great upgrade option. and ready for PTZ and POS integration.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
Matching or higher specs replacement will be shipped on most analog products, as the technology has been long discounted. all analog sales are final.

KEY FEATURES

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom (Live & Playback)
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 352 area settings
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority up to 8 Users
  • De-interlace upon live and playback
  • 22 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Mirroring
  • POS Interface
  • Dual CODEC engine for independent video transmission
  • Interactive setup via network

SPECIFICATIONS

XVST MAGIC-L08
Video Camera input 8 BNC
Individual HD/Analog selectable 720p real time / 1080p non real time Hybrid
Available source 720p25,30,50,60/1080p25,30/1080i50,60/Composite/960H/Mixed
Output 1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm out 1 relay
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280×1024, 1280×720, 1920×1080
Screen Split 1 / 4 / 6 / 8 / 9
Recording CODEC H.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel) 1080P (1080p25,30/1080i50,60)
720P (720p25,30,50,60)
WD1, D1 (Composite, 960H)
Picture quality 4 steps (Super, High, Medium, Low)
Speed NTSC : 240fps@720p / 120fps@1080p
PAL : 200fps@720p / 100fps@1080p
Playback Display 1 / 4 / 8
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC : 120fps@720p / 60fps@1080p
PAL : 10fps@720p / 50fps@1080p
Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network Network Interface Gigabit Ethernet
Speed 40fps@720p
Protocol TCP/IP, HTTP, DHCP
Application Windows XP / 7 / 8 (PC Client system& IE) / MAC
Web Browser Internet Explorer, Safari, FireFox, Chrome
Smart phone App MR. Patrol : Android, iPhone for live and search
Backup Interface USB 2.0 × 2
  Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
Max. # of HDD can be installed 2 SATA(No capacity limit ; 4TB of more)
Others Power Consumption 60W
Operating Temperature 5 ~40°C(41~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Great DVR
This DVR has excellent picture quality, it takes a little time to learn the menu but after that its much easier.
From: Guest | Date: 7/19/2020 11:48 AM
Was this review helpful? Yes No (0/0)
Products specifications
Technology HD-SDI
Technology Analog
Technology Hybrid
Number of Channels 16Ch
