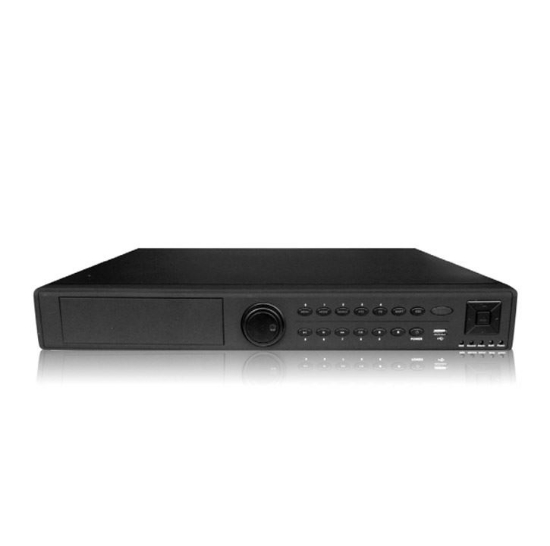

| System | Model | NVR6024 | ||
| Operating system | Embedded LINUX operating system | |||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |||
| Interface | Operation interface | 16bit real color GUI interface support mouse operation | ||
| Display screen | 1/4/8/9/16/25/36 screen | |||
| Video | Video standard | PAL（625lines，50fps）；NTSC（525lines，60fps） | ||
| Image encode | H.264(Main Profile) | |||
| Monitor quality | Monitor：D1；VGA、HDMI：High definition(Max 1920*1080) | |||
| Playback quality | 1080P/720P/960H/D1/HD1/CIF/QCIF | |||
| 24*1080P | ||||
| 32*720P | ||||
| 32* D1 | ||||
|
Network digital input：
|
||||
| Motion detection | Each channel can set 396（22*18）detection area；can set multi-level of flexibility (for local analog channel only) | |||
| Audio | Audio compression | G711A | ||
| Bidirectional talk | support | |||
| Record and playback | Record mode | manual>alarm>motion detection>timing | ||
| Local playback | 1 road and playback, | |||
| Video search | time、date、event、channel search | |||
| Storage and back up | Space occupation | Video：CIF 4~5G/day*channel， D1 16~20G/day*channel,960H 24~30G/day*channel；720P 40~50 G/ day*channel，1080P 80~100G/ day*channel；audio：691.2M/day*channel | ||
| Video storage | Local HDD 、Network | |||
| Back up mode | Network backup、USB portable HDD、USB imprint、SATA imprint | |||
| Interface | Video input | None BNC | ||
| Video output | 2ch BNC (1.0Vp-p,75Ω)，1ch VGA，1ch HDMI | |||
| Audio input | 1ch RCA(200-2800mV,30KΩ) | |||
| Audio input | 1ch RCA(200-3000mV,5KΩ) | |||
| Alarm input | 16ch | |||
| Alarm output | 4ch | |||
| Network port | RJ45 10M/100M/1000M self-adaptive Ethernet port | |||
| PTZ control | 1RS485；1RS232；support multi kinds of PTZ protocol | |||
| USB port | 2*USB2.0（one of them is multiplexing with what at the back panel） | |||
| HDD port | 4 SATA ports（each max to3TB） | |||
| Wireless port | 3G、WIFI(extension via USB port) | |||
|
|
Onvif | support | ||
| Other | Power | 12V/6A | ||
| Dimension | 440mm(L)* 345mm(W)* 60mm(H) | |||
Products specifications
| Technology | IP/Network |
| Number of Channels | 32Ch, 24Ch |
