| Product Highlights | |
| Technology | IP/Network |
| Compliance | NDAA Compliant |
| Lens | Motorized Lens |
| Camera Features | Outdoor |

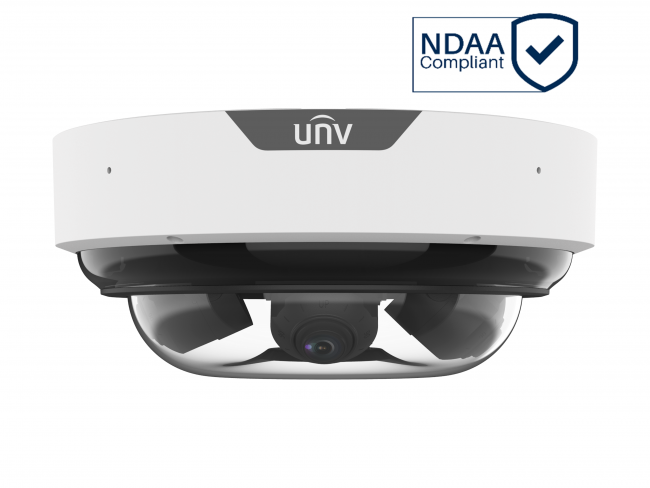

- LightHunter MultiView Wise-ISP Dome
- Ultra H.265 CODEC
- 4 x 5MP (2880x1620)
- 4 x 2.7-13.5mm Motorized Lens
- Approx 165FT IR Range
- 130dB WDR
- IP67, IK10 Rated
- PoE, AC24V ,
Details
| Model | IPC8645EA-ADZKM-I1 |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Min. Illumination | Color 0.002 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Lens | 4 x 2.7-13.5mm Motorized Lens |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 130dB WDR |
| Shutter Time | 1 Sec - 1/100,000 Sec |
| Compression Standard | |
| Video Compression | Ultra H.265, H.265, H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| Image | |
| Max. Image Resolution | 4 x 2880x1620 |
| Frame Rate | Main Stream: 2880x1620, Max 30FPS Sub Stream: 640x360, Max 30FPS |
| Network | |
| Security Measures | User Authentication (ID & PW), Host Authentication (MAC Address), IP Address Filtering |
| User/Host | Up To 32 Users |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| System Compatibility | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host Level | Up To 32 Users, 3 Levels: Administrator, Operator, User |
| Interface | |
| Communication Interface | (1) RJ45 10/100/1000M Base-TX Ethernet |
| General | |
| Operating Conditions | -22°F ~ 140°F |
| Power Supply | 24VAC, PoE, Max 31W |
| IR Range | Approx 165FT |
| Dimension | 12.52" x 5.38" |
| Weight | Approx 15 LBS |
Product reviews
Exceptional Uniview 4x5MP IP Camera
With this camera, the zoom is smooth and the night vision impresses.
Guest | 8/28/2026 9:17 PM
Was this review helpful? (0/0)
Smooth HD Surveillance
This camera's zoom captures fine details effortlessly.
Guest | 8/23/2025 11:29 AM
Was this review helpful? (0/0)
Only registered users can write reviews
