| Product Highlights | |
| Technology | IP/Network |
| Compliance | NDAA Compliant |
| Resolution | 4MP |
| Camera Features | Outdoor |

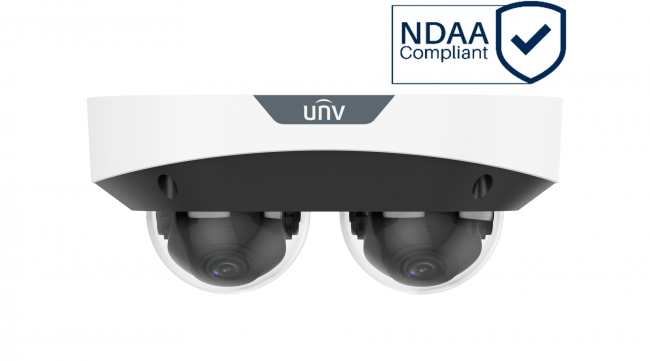

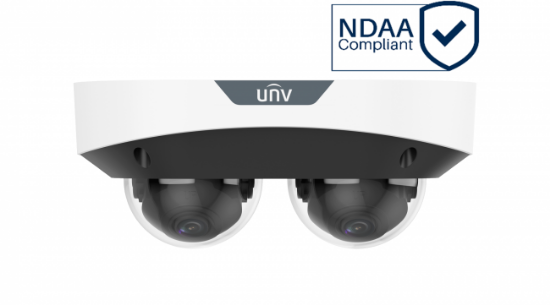

- Multi-Sensor Network Camera• Dual Directional Lenses
- 2 x 4MP (2688x1520)
- 2 x 2.8mm Lens
- Approximately 100FT IR Range• 130dB WDR, IP67 Rated
- Vandal Resistant
- Built-in MicroSD Card Slot• PoE, DC12V
Details
| MODEL | IPC3224SS-ADF28K-I1 |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.6, AGC On) |
| Shutter Speed | 1 sec - 1/100,000 sec |
| Lens | 2.8mm x 2 |
| Angle Adjustment | Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 130dB |
| IR Distance | Approximately 100FT |
| Compression Standard | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 8 fixed regions |
| Image | |
| Max Resolution | 2688 x 1520 |
| Frame Rate | 25FPS (4MP: 2688x1520, 3MP: 2304x1296, 2MP: 1920x1080) |
| Day/Night Switch | Day, night, auto, schedule, triggered by alarm |
| Image Enhancements | BLC, HLC, EIS, 3D DNR |
| Image Settings | Saturation, birghtness, contrast, sharpness |
| Network | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP |
| Client | EZStation, EZView, EZLive |
| Web Browser | Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Audio | 2 Built-in Mics, 1 Line In, 1 Line Out |
| Communication | 1 RJ45 10/100M self adaptive |
| Alarm | 1 Input, 1 Output |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, Up To 256GB |
| General | |
| Impact Protection | IK10, IP67 |
| Operating Conditions | -22°F - 140°F, Humidity 95% or less (non-condensing) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | 10W |
| Dimensions | 6.9" x 4.1" x 2.8" |
| Weight | Approx 2 LBS |
