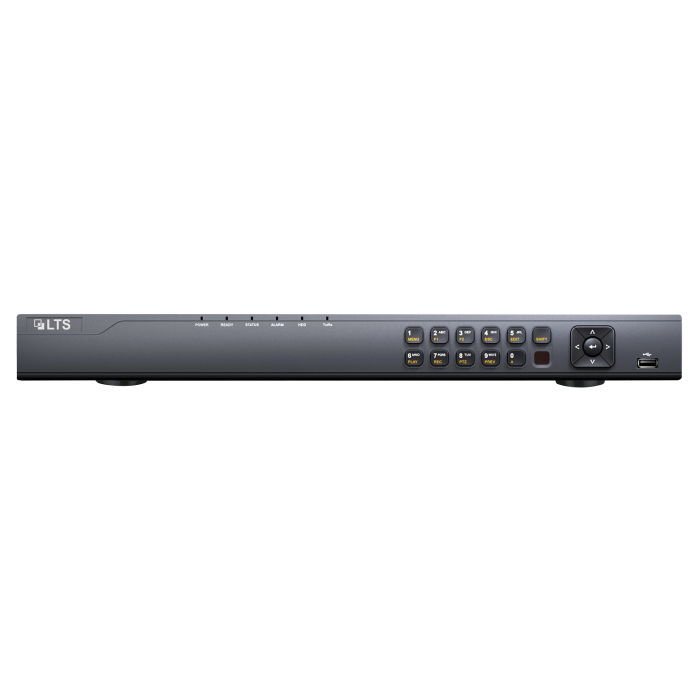

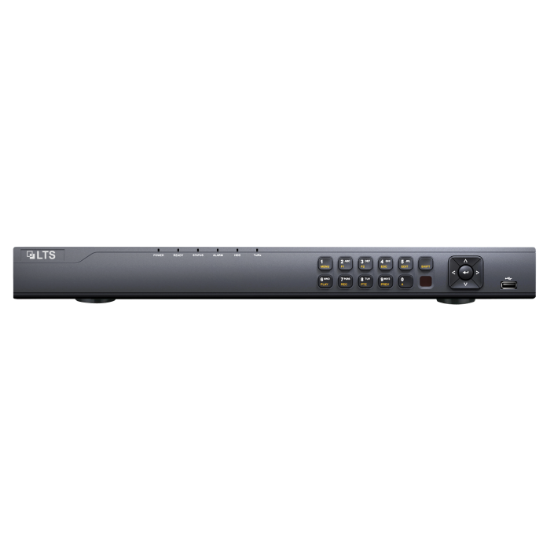

| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 8Ch |
- H.265+ compression effectively reduces the storage requirement by up to 75%
- Provides simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
- Supports 2 x SATA up to 6 TB each
- Smart search / smart playback improves playback efficiency
- Supports multiple Video Content Analytics (VCA) events
- Special camera smart functions can be configured, such as VCA detections (motion, line crossing, intrusion, etc.), heat mapping, ANPR, and people counting
- 8 independent PoE network interfaces
- Single self-adaptive 10/100 Mbps Ethernet interface
- LTS-Connect & DDNS for easy network management
| Video and Audio | |
| IP Video Input | 8 channels Up to 8 MP resolution |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1 ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz |
| VGA Output | 1 ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz |
| Video Output Mode | HDMI / VGA simultaneous output |
| CVBS Output | N/A |
| Audio Output | 1 ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio Input | 1 ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Formats | H.264 / H.264+ / H.265 / H.265+ |
| Recording Resolutions | 3, 4, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 8 ch |
| Capability | 1 ch @ 8 MP (30 fps) / 5 ch @ 1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711 ulaw / G.711 alaw / G.722 / G.726 |
| Network | |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE | |
| Interfaces | 8 x RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 80 W |
| Supported Standards | IEEE 802.3 af / at |
| Auxiliary Interfaces | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 6 TB capacity for each disk |
| USB | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| General | |
| Power Supply | 48 VDC, 2.5 A |
| Consumption (no HDD; PoE off) | ≤ 15 W |
| Operating Temperature | 14° to 131° F (-10° to 55° C) |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 15.2 × 12.4 × 2.0" (385 × 315 × 52 mm) |
| Weight (without HDD) | ≤ 5.7 lb (2.6 kg) |
