Manufacturer: Hikvision

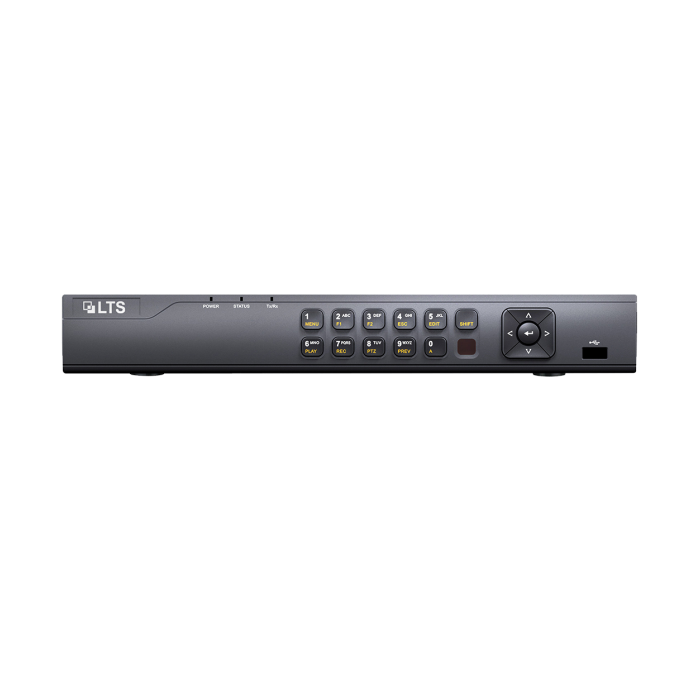

Platinum 4-Channel Professional Level NVR mini 1U (LTN8704QN-P4)

SKU: 202163
MPN: LTN8704QN-P4
Scalable and smart, the Platinum 4-Channel Professional Level NVR mini 1U ip nvr (model LTN8704QN-P4) gives you the power to expand with ease.
$280.99
$375.99

Storage calculator

Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
Number of Channels4Ch
  • Up to 4-ch IP camera inputs
  • H.264 / H.264+ / H.265 / H.265+ video formats
  • Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth

Video and Audio
IP Video Input4-ch
Up to 8 MP resolution
Incoming Bandwidth40 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz
VGA Output1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz
Video Output ModeHDMI / VGA simultaneous output
CVBS OutputN/A
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-way Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding FormatsH.264 / H.264+ / H.265 / H.265+
Recording Resolutions3, 4,5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback4 ch
Capability1 ch @ 8 MP (30 fps) / 5 ch @ 1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711 ulaw / G.711 alaw / G.722 / G.726
Network
Remote connection16
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface4 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 50 W
Supported StandardIEEE 802.3 af / at
Auxiliary Interface
SATA1 x SATA interface
CapacityUp to 6 TB capacity for each disk
USB InterfaceFront panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
General
Power Supply48 V DC, 1.35 A
Consumption (witdout HDD and PoE off)≤ 10 W
Working Temperature14° to 131° F (-10° to 55° C)
Working Humidity10% to 90%
Dimensions (W × D × H)12.4 x 9.4 x 1.9" (320 x 240 x 48 mm)
Weight (without HDD)≤ 1 kg (2.2 lb)
