| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 64Ch, 4Ch |

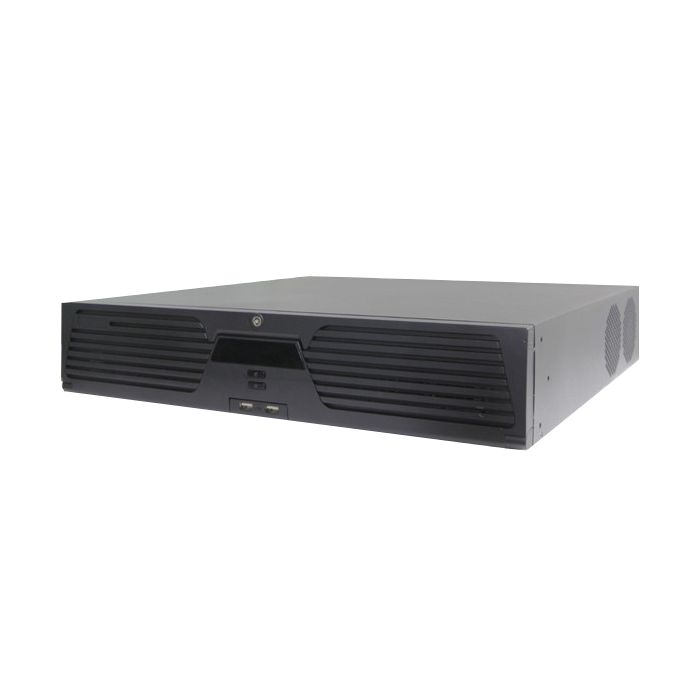

- 64-Channel Network Video Recorder
- Video Input: 64 IP channels @ 768 Mbps
- Video Output: VGA / HDMI up to 3840 x 2160
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 8 MP (3840 x 2160)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channels: 16
- Playback Resolution: Up to 8 MP (4096 x 2160)
- Audio Channels In/Out: 1 / 1, BNC
- Alarm Channels In/Out: 16 / 4
- Network: 10/100/1000 Mbps, 2 x RJ45
- Storage: 8 x SATA up to 48 TB; RAID; eSATA; 2 USB 2.0 + 2 USB 3.0; NAS, IP SAN
- Backup: USB, NAS, or eSATA, DVD-RW
- 2U
| Audio / Video Input | |
| IP Video Input | 64 channels |
| Two-Way Audio Input | 1 channels, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Remote connections | 128 |
| Network Protocols | Hikvision, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (VERSION 2.4), Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, Zavio |
| HDMI output | 2-ch, resolution: |
| VGA Output | 1-ch, resolution: |
| Audio Output | 1 ch, BNC (Linear, 600 Ω) |
| Decoding | |
| Decoding Format | H.264, MPEG4, M-JPEG |
| Recording Resolution | 8 MP / 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous playback | 16 channels |
| Hard Drives | |
| SATA | Up to 8 x SATA interfaces for 4 x HDD + 1 DVD-R/W, or 8 x HDDs |
| eSATA | 1 x eSATA interface |
| Capacity | Up to 8 TB capacity for each HDD |
| Disk Array | |
| RAIDTypes | 0, 1, 5, 10 |
| Number of Arrays | 8 |
| Interface | |
| Network Interface | 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Serial interface | RS-232, RS-485, RS-485 keyboard |
| USB Ports | 2 x USB 2.0 + 2 x USB 3.0 |
| Alarm Channels (In/Out) | 16 / 4 |
| General | |
| Power Supply | 100 ~ 240V AC, 6.3 A, 50 ~ 60 Hz |
| Power Consumption | ≤ 100 W |
| Operating Temperature | 14° to 131° F (-10° to 55° C) |
| Operating humidity | 10% ~ 90% |
| Dimensions | 17.52 x 18.5 x 3.54" (445 x 470 x 90 mm) |
| Weight | ≤ 17.64 lb (8 kg) (without hard drive or DVD-R/W ) |
