| Product Highlights | |
| Technology | IP/Network |

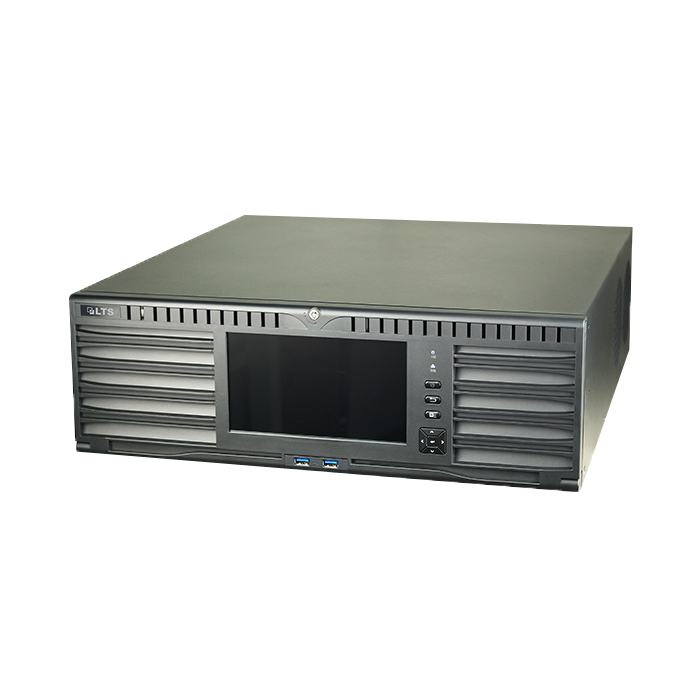

- 256 Channel Network Video Recorder
- Video Input: 256CH IP@640Mbps
- Video Output: VGA/HDMI up to 1920x1080P
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 8MP (4096x2304)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channel: 16CH
- Playback Resolution: Up to 8MP (4096x2304)
- Audio In/Out: 1CH/ 1CH, RCA
- Alarm In/Out: 16/8
- Network: 10/100/1000M, 4xRJ45
- Storage:
- 16 SATA up to 96 TB, RAID
- 2 USB 2.0 + 2 USB 3.0
- NAS, IP SAN
- Backup: USB, NAS, or eSATA, DVD-RW
| Video/Audio Input | |
| IP Video Input | 256-CH,Up to 8MP Resolution |
| Two-Way audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 640Mbps, or 400Mbps (When RAID is Enabled) |
| Outgoing Bandwidth | 400Mbps |
| Remote Connection | 256 |
| Video/Audio Output | |
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI1/VGA1 Output Resolution | 1-ch, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| HDMI2 Output | 1-ch, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| HDMI outputs (on HDMI Output Extension Board) | 1-ch, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Decoding | |
| Live View/Playback Resolution | H.264, MPEG4, M-JPEG |
| Synchronous Playback | 16-CH |
| Capability | 44-ch@1080P |
| Hard Drives | |
| SATA | 16 SATA Interfaces for 16HDDs |
| Capacity | Up to 6TB Capacity for Each HDD |
| Disk Array | |
| Array Type | RAID0, RAID1, RAID5, RAID10 |
| Number of Array | 16 |
| Interface | |
| Network Interface | 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet Interfaces |
| Optic Fiber Interface | 4, 1000 Mbps Optic Fiber Interface |
| Serial Interface | RS-232; RS-485; Keyboard |
| USB Interface | 2 × USB 2.0 on Front Panel and 2 × USB 3.0 on Rear Panel |
| Alarm In/Out | 16/8 |
| General | |
| Power Supply | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption | ≤ 100 W (Without Hard Disk or DVD-R/W) |
| Working Temperature | 14ºF ~ 131ºF(-10 ºC ~ +55 ºC) |
| Working Humidity | 10% ~ 90% |
| Casing | 19-Inch Rack-Mounted 3U Chassis |
| Dimensions (WxDxH) | 17.4" ×19.4"×5.7"(442× 494 ×146 mm) |
| Weight | ≤ 34.2 lb (15.5 Kg,without hard disk or DVD-R/W) |
