| Product Highlights | |
| Number of Channels | 16Ch |
| Technology | HD-TVI |
- Up to 16 analog camera inputs and 4 SATA interfaces
- H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+ video compression
- Up to 8 MP @ 8 fps / 5 MP @ 12 fps encoding capability
- HD-TVI / AHD / CVI / CVBS / IP video inputs
- Up to 34 network camera inputs
- POS-triggered recording and POS information overlay
- RAID 0, 1, 5, 6, 10 for even more reliable data storage, radically reduces risks of data loss

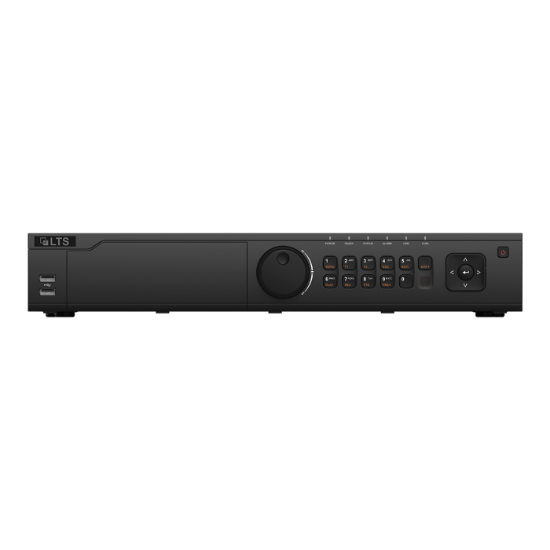

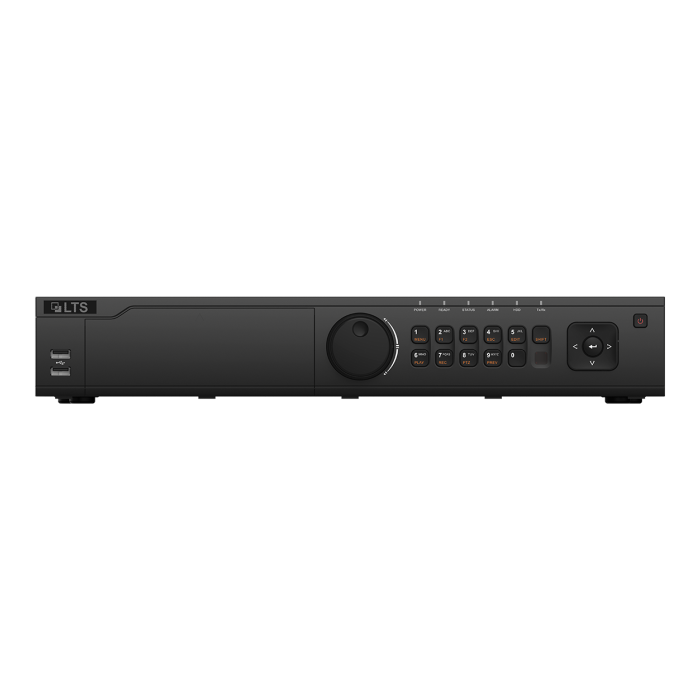

| Specs | LTD8416M-ST |
| Recording | |
| Video Compressions | H.265 Pro+ / H.265 Pro / H.265/H.264+ / H.264 |
| Encoding Resolutions | 8 MP / 3K/5 MP / 4 MP / 3 MP/1080p/720p/WD1 / 4CIF/VGA / CIF |
| Frame Rates | Main stream : 8 MP @ 8 fps/ 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps 1080p/720p/WD1 / 4CIF/VGA / CIF @ 25 fps (P) / 30 fps (N) Sub-stream : WD1 / 4CIF/CIF @ 25 fps (P) / 30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Supported |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711 u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 18 channels (up to 34) Up to 12 MP resolution Support for H.265+/ H.265/H.264+ / H.264 IP cameras |
| Analog Video Input | 16 channel BNC interface (1.0 Vp-p, 75 2), supporting coaxitron connection |
| HDTVI Input | 3K; 4 & 5 MP; 3, 4, 5, 8 MP; 1080p @ 25 & 30 fps; 720p @ 25, 30, 50, & 60 fps |
| AHD Input | 4 & 5 MP, 720p @ 25 & 30 fps, 1080p @ 25 & 30 fps |
| HDCVI Input | 4 MP; 720p @ 25 & 30 fps; 1080p @ 25 & 30 fps |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1 channel, BNC (1.0 Vp-p, 75 Q2), resolution : PAL : 704 × 576, NTSC : 704 × 480 |
| HDMI 1 Output | 1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz |
| HDMI 2 Output | 1 ch, 4K (3840 x 2160) @ 30 Hz, 2K (2560 x 1440) @ 60 Hz, 1920 × 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz |
| VGA Output | 1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz |
| Video Output Mode | HDMI1/VGA simultaneous output; HDMI2 / VGA independent output |
| Audio Input | 4 ch, RCA (2.0 Vp-p, 1 KQ) |
| Audio Output | 2 ch, RCA (Linear, 1 KQ) |
| Two-Way Audio | 1 ch, RCA (2.0 Vp-p, 1 KQ) (independent) |
| Synchronous Playback | 16 channels |
| Network | |
| Total Bandwidth | 320 Mbps |
| Remote Connections | Video Solutions for Security Professionals" 128 |
| Network Protocols | TCP/IP, PPPOE, DHCP, Hik-Connect, DNS, DDNS, NTP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF, SNMP |
| Network Interface | 2 x RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 4 x SATA interfaces |
| eSATA | Supported |
| Capacity | Up to 12 TB storage capacity for each disk |
| Serial Interface | RS-232, RS-485 (full-duplex), keyboard |
| Alarm In / Out | 16/4 |
| USB Interface | Front panel : 2 × USB 2.0 Rear panel : 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤35 W (without HDD) |
| Operating Temperature | 14° to 131° F (-10° to 55° C) |
| Operating Humidity | 10% to 90% |
| Dimensions (W x D x H) | 17.5 x 15.7 x 2.8 in. (445 x 400 × 71 mm) |
| Weight (without HDD) | ≤11.0 lbs (5 kg) |
