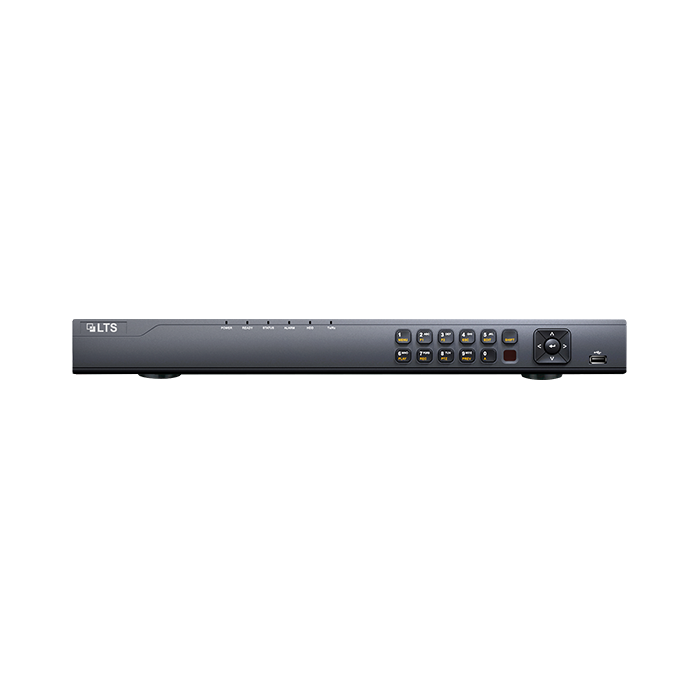

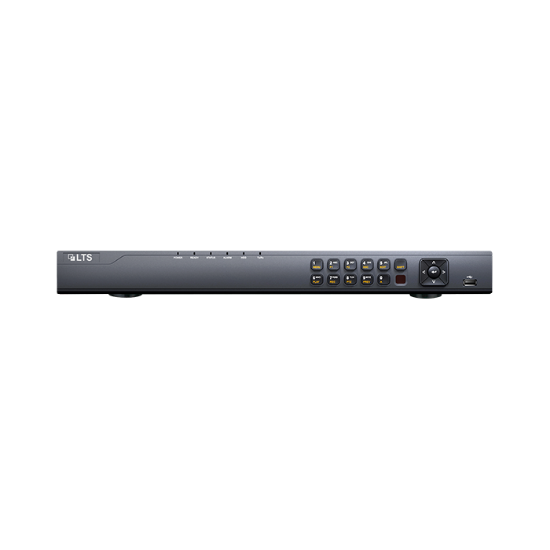

| Product Highlights | |
| Number of Channels | 16Ch |
| Technology | HD-TVI |
- Analog & HD-TVI Video In: 16 chs.
- IPC Input: 2 chs. 1080p @ 30 fps
- Video Output: VGA / HDMI up to 1080p
- Playback Channel: 16 chs.
- Audio channels In/Out: 1 / 1, RCA
- Network: 10/100/1000 Mbps
- Storage: 2 x SATA up to 12 TB
- USB: 2 x USB 2.0
- PTZ: 1 x RS485
- Supports 4 POS channels
- 1U
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 16 channels |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP inputs | 2 chs (1080p @ 30 fps) |
| Audio compression | G.711u |
| Audio inputs | 1 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio inputs | 1 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Encoding resolutions | Main stream: 1080p (non-real-time) / 720p / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
| Frame rate | Main stream: 1/16 fps - Real-time frame rate |
| Sub-stream: 1/16 fps - Real-time frame rate | |
| Video bit rate | 32 Kbps - 4 Mbps |
| Audio output | 1 ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Supported |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16 channels |
| Playback resolution | 1080p / 720p / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connection | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Drive | |
| SATA | 2 x SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| External interface | |
| Network interface | 1; 10/100/1000 Mbps |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 × USB2.0 |
| General | |
| Power supply | 12 V DC |
| Power Consumption | ≤ 30 W |
| Operating temp. | 14° - 131° F (-10° to 55° C) |
| Operating humidity | 10% - 90% |
| Dimensions | 17.5 x 11.4 x 1.8" (445 × 290 × 45 mm) |
| Weight | ≤ 4.4 lb (2 kg) |
