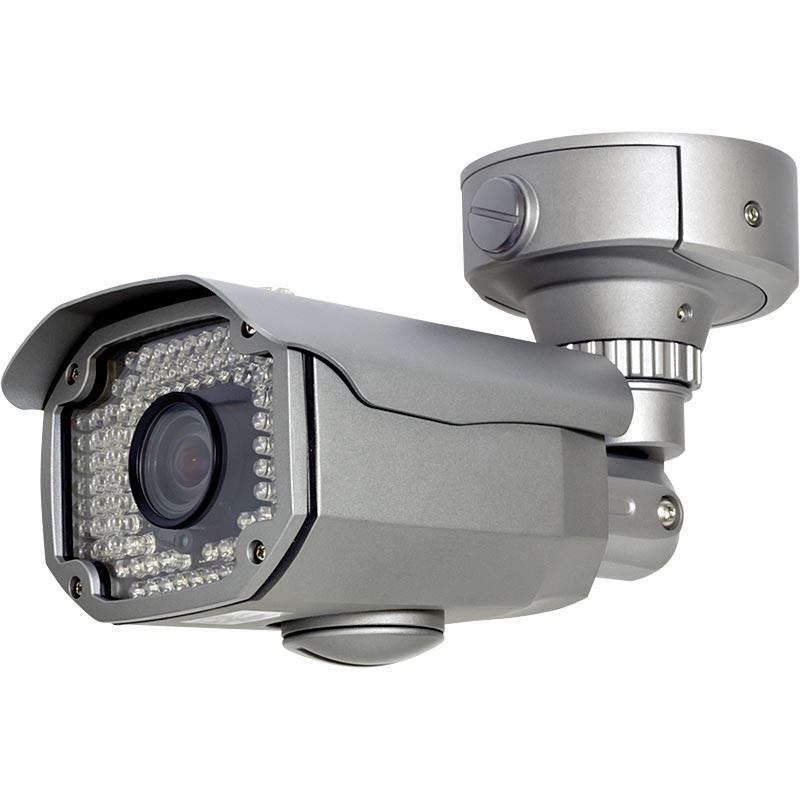

HD-SDI 1080p Long Range Outdoor IR Bullet Camera 2.8-12mm Dual Power (XIR-2284FV)

SKU: 141286
MPN: XIR-2284FV
$293.94
$244.95
HD-SDI FULL HD 1080p Bullet Security Camera 2.8~12mm Mega-Pixel AVF Lens (external control) True Day & Night(ICR) • DC 12V or AC 24V 80 IR LED / Range up to 200ft
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)

KEY FEATURES

  • 1/3" Sony CMOS
  • HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
  • HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 80pcs)
  • Upgraded waterproof housing (IP67 rating) / OSD Controlled
  • True Day & Night(ICR) / DNR (Digital Noise Reduction)
  • Motion / Privacy / Easy Installation
  • 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)
  • DC 12V / AC 24V : DUAL POWER

SPECIFICATIONS

XIR 2284FV
Resolution HD-SDI(1080p, 720p) / 1000 TV line over
Sensor 1/3" Sony CMOS
Total Pixels 2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels 1944(H) × 1092(V) = 2.1M Pixel
Scanning System Progressive
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI)
Min.Illumination 0 lux at IR On
White Balance Auto / Auto EXT / Pushing / Manual
Electronic Shutter Speed Auto / Manual (1/30sec ~ 1/30,000sec)
Brightness Adjustable (0 ~ 20 Step)
SENS_UP Off / ×2 / ×3 / ×4
DNR Off / Low / Middle / Hi
WDR / BLC Off / Single scan WDR / BLC
HLM Off / Set
ACE Off / On
Day & Night Auto (Day <--> Night time change) , Color , B/W
Privacy Off / On (28 Zone)
Motion Detection Off / On
D.ZOOM 0 ~ ×112
FLIP Off / On
FREEZE Off / On
Language English
Sharpness Adjustable (0 ~ 10 Step)
Mirror On / Off
COMM. RS-485(PELCO-D)
Operating Temperature / Humidity 14°F~122°F (-10°C~+50°C) / 30%~80% RH
Storage Temperature / Humidity -4°F~+140°F (-20°C~+60°C) / 20%~90% RH
Power DC 12V / AC 24V
Distance 300 ~ 450ft (100 ~ 150m)
Transmission range Max transmission range is depends on the cable manufacturer and the installation environment.

Write your own review
  • Bad
  • Excellent
Products specifications
Camera Features WDR
Camera Features Outdoor
Resolution 2MP/1080p
Technology HD-SDI
Lens 2.8-12mm
