Manufacturer: Hanwha Vision

Hanwha Vision (TNO-L4040TR)

SKU: 212419
MPN: TNO-L4040TR
(TNO-L4040TR) is a capable security device delivering secure remote access, flexible placement, and intuitive management tools. It integrates easily into modern networks and.
Call for price
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
ComplianceNDAA Compliant

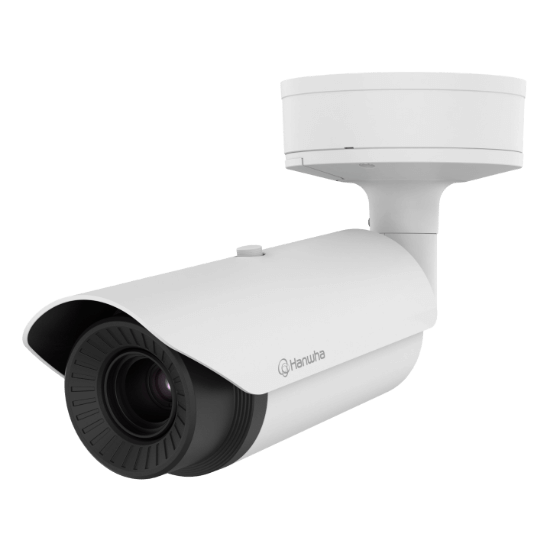

  • Wisenet T network outdoor vandal Radiometric bullet camera (uncooled)
  • 640x480 @ 8fps
  • 19mm fixed focal lens (32°)
  • Triple codec H.265/H.264/MJPEG with Wisestream II
  • Built-in SD card slot (1x256GB)
  • Advanced video analytics and sound classification
  • PTZ handover
  • Up to 6 user-programmable temperature detection areas
  • Temperature detection range: -4°F ~ 266°F
  • Open platform
  • DIS (Gyro)
  • Integrated back box
  • IP66, IK10
  • PoE / 12VDC / 24VAC
  • White color

Video
Imaging DeviceUncooled micro bolometer
Resolution640x480, 640x360, 320x240
Max. FramerateH.265/H.264/MJPEG: Max. 8fps
NETD＜50mK
Pixel Size17㎛
Video OutUSB: Micro USB Type B, 1280x720 for installation
Video Transmission DistanceCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)19mm fixed focal
Max. Aperture RatioF1.0
Angular Field of ViewH: 32° / V: 24.3° / D: 39.2°
Min. Object Distance11m(36.09ft)
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point Polygonal zones
Privacy Masking24ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Video RotationFlip, Mirror, Hallway view(90°/270°)
AnalyticsDirectional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
Alarm I/OInput 1ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input, MQTT subscription
Alarm EventsWhen alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Color PalettesWhitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range-20°C~130°C(-4°F~266°F)
Temperature Accuracy±5°C(≤100°C), ±20%(>100°C)
Temperature Detection6 Quadrangle ROI zones, whole FoV area
AdditionalHybrid palettes, Spot temperature reading
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Security
OS / Firmware ProtectFirmware encryption
User authenticationDigest Authentication, Prevent brute-force attack
Network authentication802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure CommunicationHTTPS, SRTP, WSS(Websocket secure)
Access ControlAccess control based on IP address
Data ProtectAuthentication information encryption, ZIP compression encryption
AuditUser Access/System/Event log management
Device IDDevice Certificate(Hanwha Private Root CA)
General
Webpage LanguageEnglish, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Memory1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10, NEMA4X
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power ConsumptionPoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product Dimensions / Weightø101.97x401.8mm(4.01x15.82") / 3,124g(6.89lb)
