Manufacturer: Hanwha Vision

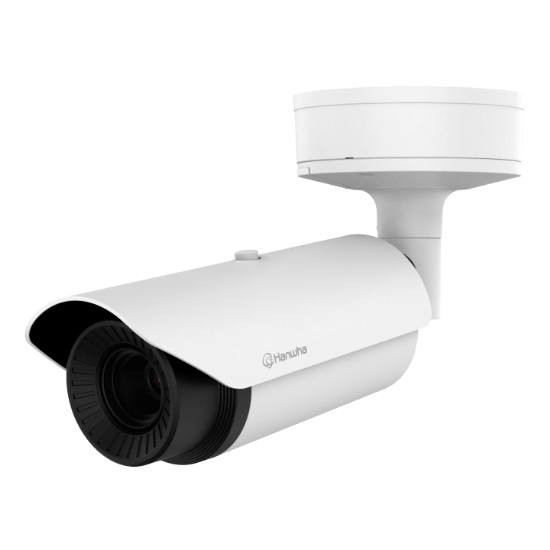

Hanwha Vision (TNO-L4030T)

SKU: 212442
MPN: TNO-L4030T
(TNO-L4030T) is a advanced security device delivering efficient bandwidth management, broad VMS compatibility, and refined image processing. It integrates easily into modern networks.
Call for price
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyIP/Network
ComplianceNDAA Compliant
  • Max. 640 x 480 resolution support
  • 13mm fixed focal
  • H.265, H.264, MJPEG codec
  • Max. 8fps@all resolutions (H.265, H.264, MJPEG)
  • Motion detection, Handover, Tampering, Loitering, Temperature detection
  • Directional detection, Audio detection
  • Micro SD/SDHC/SDXC 1slot 256GB
  • Hallway View, WiseStreamII support
  • PoE(IEEE802.3af, Class3), 24VAC, 12VDC
  • IP66, IK10, NEMA4X

Video
Imaging DeviceUncooled micro bolometer
Resolution640x480, 640x360, 320x240
Max. FramerateH.265/H.264/MJPEG: Max. 8.3fps
NETD＜50mK
Pixel Size17㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)13mm fixed focal
Max. Aperture RatioF1.0
Angular Field of ViewH: 48.6° / V: 36.4 / D: 61.6°
Min. Object Distance5m(16.40ft)
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Video RotationFlip, Mirror, Hallway view(90°/270°)
AnalyticsDirectional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/OInput 1ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio InSelectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Color PalettesWhitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR MJPEG: VBR
StreamingUnicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming InterfaceONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Memory1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하
CertificationIP66, IK10, NEMA4X
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power ConsumptionPoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product Dimensions / WeightΦ101.97x401.8mm(4.01x15.82") / 3124g(6.89 lb)
